JIC 37° Flare Fittings · 0318 family
0318-16-B

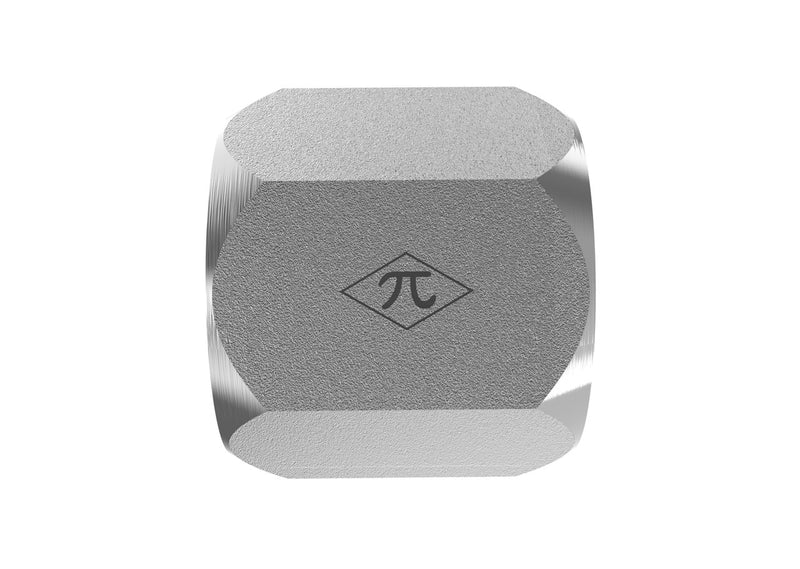

1" JIC Tube Nut · Tube Nut
$9.66
per pieceIn stock
- Side 1
- 1" JIC Tube Nut
- Material
- Brass
- Plating
- Natural Finish
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11" JIC Tube Nut
Thread Type1-5/16-12
Tube OD1"
MaterialBrass
Plating / FinishNatural Finish
ConfigurationTube Nut
StandardSAE J514
0318-16-B is a 1" JIC Tube Nut in the 0318 Series. For assembly with 37° flared tube sleeve, male 37° flare fitting, and flared tube, to create a reliable tube connection.
Specifications
| Part Number | 0318-16-B |
|---|---|
| Series | 0318 |
| Product Type | Tube Nut |
| Side 1 Connection | 1" JIC Tube Nut |
| Tube OD | 1" |
| Thread Type (Side 1) | 1-5/16-12 |
| Material | Brass |
| Finish / Plating | Natural Finish |
| Standard (Side 1) | SAE J514 |
| Weight | 0.26 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1" JIC Tube Nut
- Thread1-5/16-12
- Tube OD1"
- StandardSAE J514
Construction
- MaterialBrass
- PlatingNatural Finish
- ConfigurationTube Nut
- Weight0.26 lb
Product Family
CategoryJIC 37° Flare Fittings
Family0318
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 1290-16 | 0318-16-B |
| Parker (Triple-Lok / TFD) | 16 BTX | 0318-16-B |
| Sae | 70110 | 0318-16-B |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
