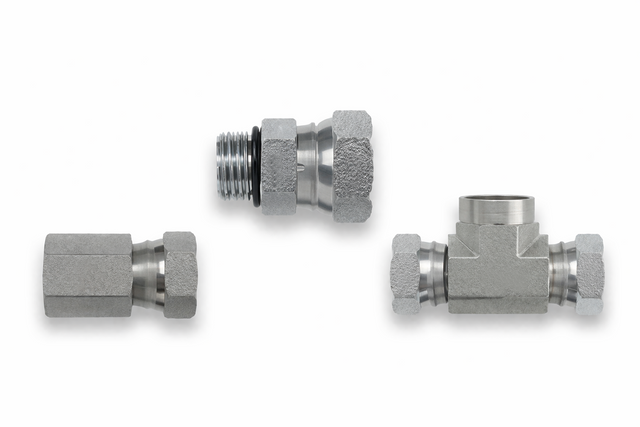

NPSM Pipe Swivels

An NPSM swivel carries its seal behind the thread rather than on it. The nut runs on a straight pipe thread that supplies clamp load only; inside it a 30° conical seat is pulled onto the chamfered nose of a male NPSM or NPT end, and that cone-against-chamfer line contains the pressure. The parallel thread lets the nut sit at any depth without altering the seal.

That is why the swivel exists. A gauge line, hose or accessory is positioned and tightened while the nut turns independently, so nothing downstream is wound up and a dial ends up facing the operator. ASME B1.20.1 defines NPSM as a straight mechanical pipe thread, distinct from the tapered NPT it usually mates with. Sealing depends on that male chamfer: a burred or out-of-round nose will weep, and torque will not cure it.

Where it's specified

• Gauges and instruments — the nut spins free, so the face is aimed after tightening
• Hose ends onto male pipe ports — assembly rotation goes into the nut, not the hose
• Filter heads and bolt-on accessories — the component keeps its male port, the line side stays serviceable
• Joints broken open on a schedule — the seat remakes cleanly, no hardened sealant to scrape out

Range and materials. Female swivel adapters, swivel elbows, gauge adapters and hose ends converting NPSM to male NPT, JIC 37°, ORFS and BSP, from 1/8 in. through 1 in. with selected shapes above. Carbon steel, 316 stainless and brass are all available, brass usual on instrument work.

Ordering notes. Leave the swivel end dry — tape on a straight thread achieves nothing and can hold the cone off its seat. A female NPSM swivel and a female NPT tap read alike in a parts list, so check the thread is parallel and the chamfer intact. Tighten to seat the cone and a little beyond; extra torque only distorts the surface doing the work.
