A barbed connection makes no seal on its own. The serrated stem is pushed into the hose bore and the ridges dig into the wall, but the force closing the joint comes from outside — a worm clamp, a spring clamp or a crimped ferrule pressing the hose onto the barbs. Keep that load and the joint holds; lose it and the hose creeps off the stem.
Barbs suit modest pressure where cost, weight and assembly speed matter more: suction, return, coolant, fuel, air and washdown, built with hand tools. Because the hose is the sealing element — an elastomer that relaxes with heat and cycling — the barb gives up the ceiling a flare offers. Standards apply to the other end, not the stem: SAE J514 for the flare seat, J1926 for the boss, ASME B1.20.1 for pipe thread, ISO 228 for BSP.
Where it's specified
-
Suction and return legs — large bore at low pressure, where hose and a clamp beat rigid tube
-
Coolant and washdown — brass and stainless stems take water and chemicals better than steel
-
Fuel, air and small equipment — light, compact, repairable from stock
-
Assembly without crimp equipment — a barb, some hose and two clamps make a line at the machine

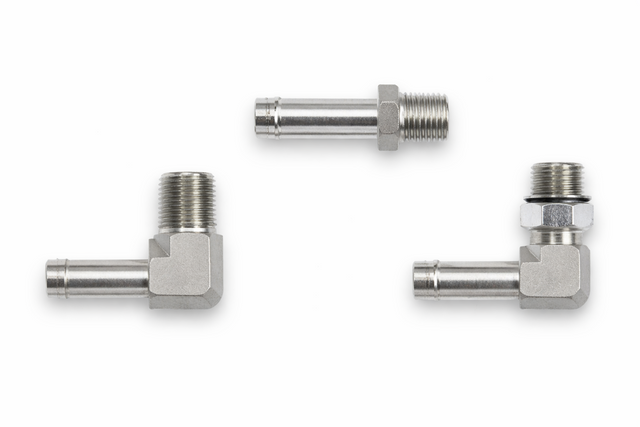

Range and materials. Straight, 45° and 90° barbs, tees, Y pieces, splices and menders, plus barb ends threaded to NPT, BSP, JIC 37° and O-ring boss, come in brass, plated steel and stainless. Barb diameters cover hose IDs from 1/8" to 2".
Ordering notes. Size the stem to the hose inside diameter, not the thread on the far end: one step oversize splits the tube going on, one step undersize never builds grip however hard the clamp is pulled. Match retention to duty: a worm clamp suits a drain leg, while anything cycling pressure or heat wants two clamps or a crimped ferrule. Re-check tightness after the first heat cycles, since the hose takes a set and the clamp slackens.
