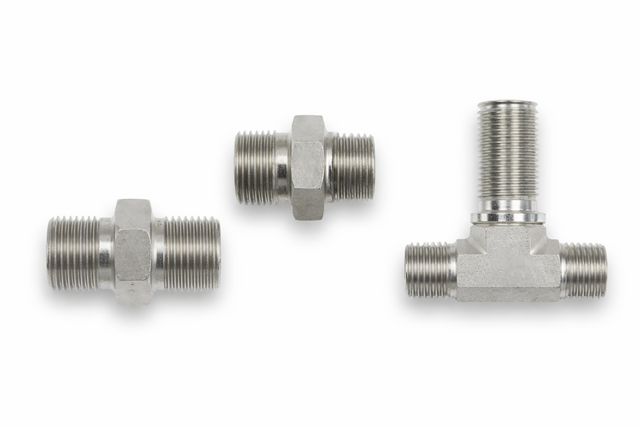

ORFS Fittings

The O-ring face seal connection splits sealing and clamping between two different parts. An elastomeric O-ring, captive in a groove cut into the flat nose of the male end, is compressed against the flat face of the mating half; the straight thread and nut only pull those faces together and hold the squeeze. Nothing about the seal depends on thread engagement.

That separation is why ORFS is chosen for machines that shake. A thread-sealed joint weeps as soon as it relaxes, while a compressed O-ring still has travel left in it. SAE J1453 and ISO 8434-3 fix the face, groove and thread dimensions so parts interchange. The trade is surface care: a scratch across the sealing face is a leak path, and the elastomer, not the steel, sets the temperature and fluid ceiling.

Where it's specified

• High-vibration mobile machines — clamp load can relax noticeably before the O-ring stops sealing
• Zero-leak plumbing — the soft seal closes machining marks a metal joint would weep through
• Assemblies opened for service — only the O-ring is consumed, so a remade joint is as good as the first
• Crews without torque control — the faces bottom against each other, so the tightening window is wide

Range and materials. Straights, 45° and 90° elbows, tees, crosses, run tees, bulkheads, swivel nuts, caps and plugs, plus converters to JIC 37°, SAE ORB, NPT, BSP and metric, in dash sizes -4 through -24 for 1/4 in. to 1-1/2 in. tube. Carbon steel with zinc plating and 316 stainless do most of the work.

Ordering notes. Nitrile O-rings are standard; specify FKM where temperature, phosphate ester or fuel contact rules nitrile out, and stock loose rings as spares. Assemble dry, then tighten until the faces meet and on to the flats or torque figure for the size. Inspect both faces first, because a dented one cannot be rescued with more torque.
