JIC 37° Flare Fittings · 7009 family

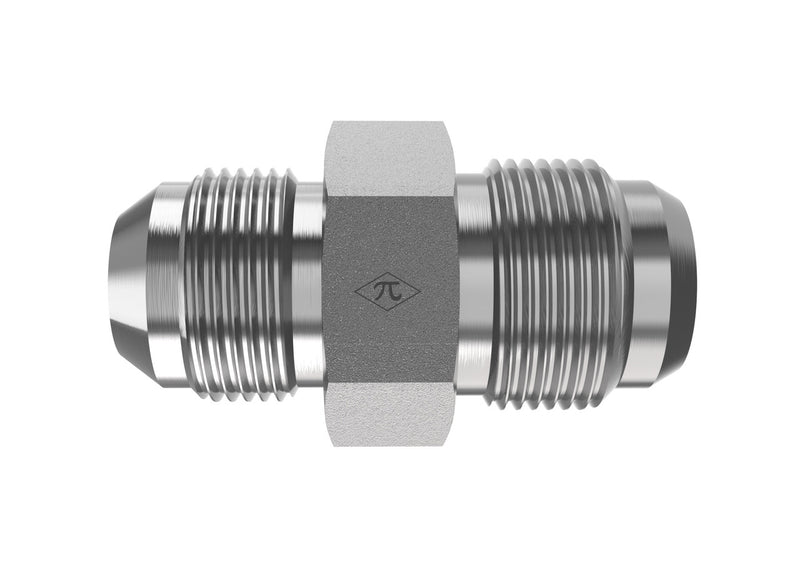

7009-12-30
3/4" Male JIC x 30 Male Komatsu · Straight
$13.00
per pieceIn stock
- Side 1
- 3/4" Male JIC
- Side 2
- 30 Male Komatsu
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 13/4" Male JIC
Side 230 Male Komatsu
Thread Type1-1/16-12 UN
Tube OD3/4"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationStraight
StandardSAE J514 / Komatsu Metric
7009-12-30 is a 3/4" Male JIC x 30 Male Komatsu in the 7009 Series. 7009 connects a male JIC tube end to a male Komatsu metric tube adapter for SAE J514 to Komatsu equipment transitions.
Specifications
| Part Number | 7009-12-30 |
|---|---|
| Series | 7009 |
| Product Type | Straight |
| Side 1 Connection | 3/4" Male JIC |
| Side 2 Connection | 30 Male Komatsu |
| Tube OD | 3/4" |
| Thread Type (Side 1) | 1-1/16-12 UN |
| Thread Type (Side 2) | 1-1/16-12 UN |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | Komatsu Metric |
| Weight | 0.48 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
3/4" Male JIC
- Thread1-1/16-12 UN
- Tube OD3/4"
- StandardSAE J514 - Class 2A Thread
Side 2
30 Male Komatsu
- Thread1-1/16-12 UN
- StandardKomatsu Metric
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationStraight
- Weight0.48 lb
Product Family
CategoryJIC 37° Flare Fittings
Family7009
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Parker (Triple-Lok / TFD) | 12-12XHMKAS | 7009-12-30 |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
