BSP Fittings · 7022-ORR family
7022-32-32-ORR

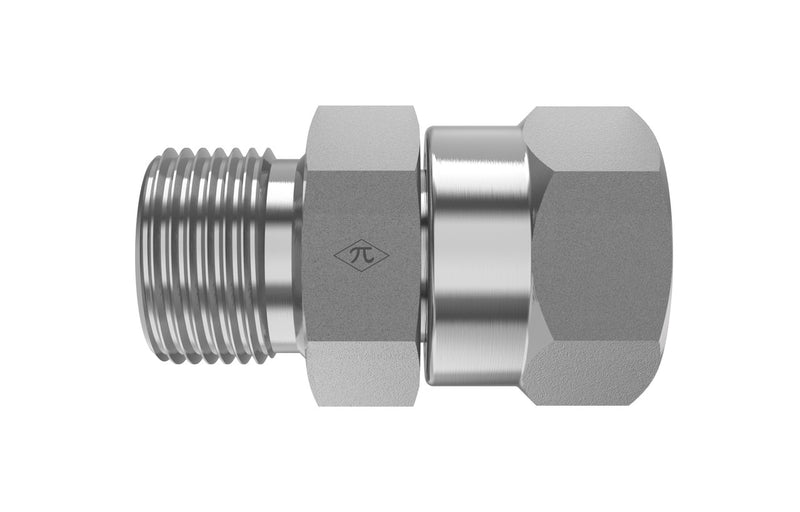

2" Female JIC Swivel x 2" Male BSPP · Straight
$135.57
per pieceIn stock
- Side 1
- 2" Female JIC Swivel
- Side 2
- 2" Male BSPP
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 12" Female JIC Swivel
Side 22" Male BSPP
Thread Type2-1/2-12 UN
Tube OD2"
Pipe Size2"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationStraight
StandardSAE J514 / BS 5200 / ISO 228 (Type G)
7022-32-32-ORR is a 2" Female JIC Swivel x 2" Male BSPP in the 7022-ORR Series. For connecting JIC lines to a male BSPP (parallel) port using an O-ring and retaining ring for sealing and a JIC swivel for easy installation alignment.
Specifications
| Part Number | 7022-32-32-ORR |
|---|---|
| Series | 7022-ORR |
| Product Type | Straight |
| Side 1 Connection | 2" Female JIC Swivel |
| Side 2 Connection | 2" Male BSPP |
| Tube OD | 2" |
| Pipe Size (Side 2) | 2" |
| Thread Type (Side 1) | 2-1/2-12 UN |
| Thread Type (Side 2) | 2-1/2-12 UN |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | BS 5200 / ISO 228 (Type G) |
| Weight | 0.23 lb |
| Category | BSP Fittings |
| Stock Status | In stock |
Connection Details
Side 1
2" Female JIC Swivel
- Thread2-1/2-12 UN
- Tube OD2"
- StandardSAE J514 - Class 2A Thread
Side 2
2" Male BSPP
- Thread2-1/2-12 UN
- Pipe Size2"
- StandardBS 5200 / ISO 228 (Type G)
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationStraight
- Weight0.23 lb
Product Family
CategoryBSP Fittings
Family7022-ORR
