2404-LL

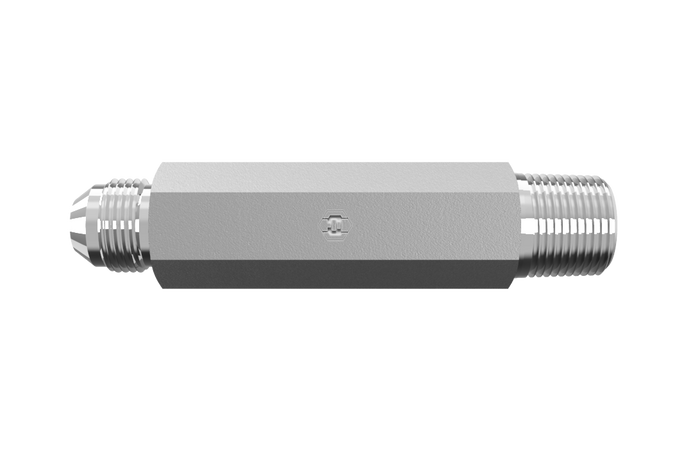

2404-LL couples a male JIC 37° flare tube end to a male NPTF pipe end in a straight adapter built on an extra-long body for deep-set pipe ports.
- Shape
- Straight Connector
- Side 1
- Male JIC
- Side 2
- Male NPTF 30°
- Standard
- SAE J514 - Class 2A Thread / SAE J476
- Material
- Steel
- Plating
- Trivalent Zinc
- Part numbers
- 12 in this series
| Part Number | Side 1 | Side 2 | Thread | Material | Plating | Price | Stock | |
|---|---|---|---|---|---|---|---|---|
| 2404-LL-04-02 | 1/4" Male JIC | 1/8" Male NPTF 30° | 7/16-20 UNF | Steel | Trivalent Zinc | $29.30 | In stock | View |
| 2404-LL-04-04 | 1/4" Male JIC | 1/4" Male NPTF 30° | 7/16-20 UNF | Steel | Trivalent Zinc | $45.19 | In stock | View |
| 2404-LL-05-02 | 5/16" Male JIC | 1/8" Male NPTF 30° | 1/2-20 UNF | Steel | Trivalent Zinc | $54.04 | In stock | View |
| 2404-LL-06-02 | 3/8" Male JIC | 1/8" Male NPTF 30° | 9/16-18 UNF | Steel | Trivalent Zinc | $41.34 | In stock | View |
| 2404-LL-06-04 | 3/8" Male JIC | 1/4" Male NPTF 30° | 9/16-18 UNF | Steel | Trivalent Zinc | $39.69 | In stock | View |
| 2404-LL-06-06 | 3/8" Male JIC | 3/8" Male NPTF 30° | 9/16-18 UNF | Steel | Trivalent Zinc | $31.50 | In stock | View |
| 2404-LL-08-06 | 1/2" Male JIC | 3/8" Male NPTF 30° | 3/4-16 UNF | Steel | Trivalent Zinc | $40.85 | In stock | View |
| 2404-LL-08-08 | 1/2" Male JIC | 1/2" Male NPTF 30° | 3/4-16 UNF | Steel | Trivalent Zinc | $50.40 | In stock | View |
| 2404-LL-10-08 | 5/8" Male JIC | 1/2" Male NPTF 30° | 7/8-14 UNF | Steel | Trivalent Zinc | $59.99 | In stock | View |
| 2404-LL-12-12 | 3/4" Male JIC | 3/4" Male NPTF 30° | 1-1/16-12 UN | Steel | Trivalent Zinc | $78.19 | In stock | View |
| 2404-LL-16-12 | 1" Male JIC | 3/4" Male NPTF 30° | 1-5/16-12 UN | Steel | Trivalent Zinc | $110.36 | In stock | View |
| 2404-LL-16-16 | 1" Male JIC | 1" Male NPTF 30° | 1-5/16-12 UN | Steel | Trivalent Zinc | $85.61 | In stock | View |
No parts on this page match the filter. or try the catalog search.
Full specifications for each part — connections, thread standards, configuration, and weight — are on the product page. To identify an unknown thread, see the thread identification guide and size charts.
