2406

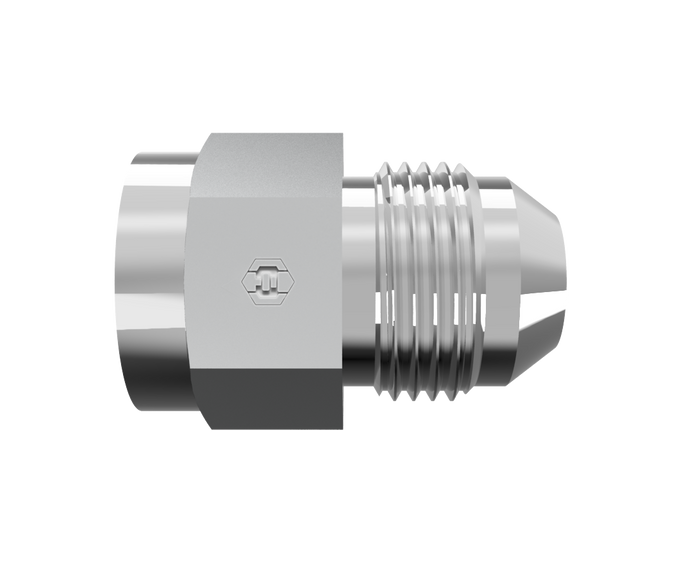

2406 adapts a female JIC 37° swivel end to a male JIC flare tube end as a straight reducer, letting the joint be pulled tight without twisting the line.
- Shape
- Reducing Adapter
- Side 1
- Female JIC Swivel
- Side 2
- Male JIC
- Standard
- SAE J514 - Class 2B Thread / SAE J514 - Class 2A Thread
- Material
- Steel
- Plating
- Trivalent Zinc
- Part numbers
- 74 in this series
| Part Number | Side 1 | Side 2 | Thread | Material | Plating | Price | Stock | |
|---|---|---|---|---|---|---|---|---|
| 2406-03-04 | 3/16" Female JIC Swivel | 1/4" Male JIC | 3/8-24 UNF | Steel | Trivalent Zinc | $13.72 | In stock | View |
| 2406-04-02 | 1/4" Female JIC Swivel | 1/8" Male JIC | 7/16-20 UNF | Steel | Trivalent Zinc | $8.79 | In stock | View |
| 2406-04-03 | 1/4" Female JIC Swivel x 3/16" Male JIC | — | — | Steel | — | $12.99 | In stock | View |
| 2406-04-04 | 1/4" Female JIC Swivel | 1/4" Male JIC | 7/16-20 UNF | Steel | Trivalent Zinc | $8.44 | In stock | View |
| 2406-04-05 | 1/4" Female JIC Swivel | 5/16" Male JIC | 7/16-20 UNF | Steel | Trivalent Zinc | $7.81 | In stock | View |
| 2406-04-06 | 1/4" Female JIC Swivel | 3/8" Male JIC | 7/16-20 UNF | Steel | Trivalent Zinc | $7.17 | In stock | View |
| 2406-04-08 | 1/4" Female JIC Swivel | 1/2" Male JIC | 7/16-20 UNF | Steel | Trivalent Zinc | $7.98 | In stock | View |
| 2406-05-04 | 5/16" Female JIC Swivel | 1/4" Male JIC | 1/2-20 UNF | Steel | Trivalent Zinc | $6.97 | In stock | View |
| 2406-05-06 | 5/16" Female JIC Swivel | 3/8" Male JIC | 1/2-20 UNF | Steel | Trivalent Zinc | $6.44 | In stock | View |
| 2406-05-08 | 5/16" Female JIC Swivel | 1/2" Male JIC | 1/2-20 UNF | Steel | Trivalent Zinc | $10.85 | In stock | View |
| 2406-06-02 | 3/8" Female JIC Swivel | 1/8" Male JIC | 9/16-18 UNF | Steel | Trivalent Zinc | $9.21 | In stock | View |
| 2406-06-03 | 3/8" Female JIC Swivel | 3/16" Male JIC | 9/16-18 UNF | Steel | Trivalent Zinc | $64.58 | In stock | View |
| 2406-06-04 | 3/8" Female JIC Swivel | 1/4" Male JIC | 9/16-18 UNF | Steel | Trivalent Zinc | $3.64 | In stock | View |
| 2406-06-05 | 3/8" Female JIC Swivel x 5/16" Male JIC | — | — | Steel | — | $16.97 | In stock | View |
| 2406-06-06 | 3/8" Female JIC Swivel | 3/8" Male JIC | 9/16-18 UNF | Steel | Trivalent Zinc | $14.28 | In stock | View |
| 2406-06-08 | 3/8" Female JIC Swivel | 1/2" Male JIC | 9/16-18 UNF | Steel | Trivalent Zinc | $17.33 | In stock | View |
| 2406-06-10 | 3/8" Female JIC Swivel | 5/8" Male JIC | 9/16-18 UNF | Steel | Trivalent Zinc | $21.07 | In stock | View |
| 2406-08-02 | 1/2" Female JIC Swivel | 1/8" Male JIC | 3/4-16 UNF | Steel | Trivalent Zinc | $8.23 | In stock | View |
| 2406-08-04 | 1/2" Female JIC Swivel x 1/4" Male JIC | — | — | Steel | — | $7.67 | In stock | View |
| 2406-08-05 | 1/2" Female JIC Swivel | 5/16" Male JIC | 3/4-16 UNF | Steel | Trivalent Zinc | $14.00 | In stock | View |
| 2406-08-06 | 1/2" Female JIC Swivel | 3/8" Male JIC | 3/4-16 UNF | Steel | Trivalent Zinc | $6.37 | In stock | View |
| 2406-08-08 | 1/2" Female JIC Swivel | 1/2" Male JIC | 3/4-16 UNF | Steel | Trivalent Zinc | $13.83 | In stock | View |
| 2406-08-10 | 1/2" Female JIC Swivel | 5/8" Male JIC | 3/4-16 UNF | Steel | Trivalent Zinc | $12.85 | In stock | View |
| 2406-08-12 | 1/2" Female JIC Swivel x 3/4" Male JIC | — | — | Steel | — | $18.41 | In stock | View |
| 2406-08-16 | 1/2" Female JIC Swivel | 1" Male JIC | 3/4-16 UNF | Steel | Trivalent Zinc | $34.13 | In stock | View |
| 2406-10-04 | 5/8" Female JIC Swivel | 1/4" Male JIC | 7/8-14 UNF | Steel | Trivalent Zinc | $13.48 | In stock | View |
| 2406-10-05 | 5/8" Female JIC Swivel | 5/16" Male JIC | 7/8-14 UNF | Steel | Trivalent Zinc | $15.02 | In stock | View |
| 2406-10-06 | 5/8" Female JIC Swivel | 3/8" Male JIC | 7/8-14 UNF | Steel | Trivalent Zinc | $9.66 | In stock | View |
| 2406-10-08 | 5/8" Female JIC Swivel | 1/2" Male JIC | 7/8-14 UNF | Steel | Trivalent Zinc | $6.48 | In stock | View |
| 2406-10-10 | 5/8" Female JIC Swivel | 5/8" Male JIC | 7/8-14 UNF | Steel | Trivalent Zinc | $11.48 | In stock | View |
| 2406-10-12 | 5/8" Female JIC Swivel | 3/4" Male JIC | 7/8-14 UNF | Steel | Trivalent Zinc | $24.43 | In stock | View |
| 2406-10-16 | 5/8" Female JIC Swivel | 1" Male JIC | 7/8-14 UNF | Steel | Trivalent Zinc | $39.13 | In stock | View |
| 2406-12-04 | 3/4" Female JIC Swivel | 1/4" Male JIC | 1-1/16-12 UN | Steel | Trivalent Zinc | $15.44 | In stock | View |
| 2406-12-05 | 3/4" Female JIC Swivel | 5/16" Male JIC | 1-1/16-12 UN | Steel | Trivalent Zinc | $29.72 | In stock | View |
| 2406-12-06 | 3/4" Female JIC Swivel | 3/8" Male JIC | 1-1/16-12 UN | Steel | Trivalent Zinc | $13.55 | In stock | View |
| 2406-12-08 | 3/4" Female JIC Swivel | 1/2" Male JIC | 1-1/16-12 UN | Steel | Trivalent Zinc | $10.57 | In stock | View |
| 2406-12-10 | 3/4" Female JIC Swivel | 5/8" Male JIC | 1-1/16-12 UN | Steel | Trivalent Zinc | $10.15 | In stock | View |
| 2406-12-12 | 3/4" Female JIC Swivel | 3/4" Male JIC | 1-1/16-12 UN | Steel | Trivalent Zinc | $11.55 | In stock | View |
| 2406-12-16 | 3/4" Female JIC Swivel | 1" Male JIC | 1-1/16-12 UN | Steel | Trivalent Zinc | $13.97 | In stock | View |
| 2406-12-20 | 3/4" Female JIC Swivel x 1-1/4" Male JIC | — | — | Steel | — | $32.34 | In stock | View |
| 2406-14-04 | 7/8" Female JIC Swivel x 1/4" Male JIC | — | — | Steel | — | $129.75 | In stock | View |
| 2406-14-06 | 7/8" Female JIC Swivel | 3/8" Male JIC | 1-3/16-12 UN | Steel | Trivalent Zinc | $22.19 | In stock | View |
| 2406-14-08 | 7/8" Female JIC Swivel | 1/2" Male JIC | 1-3/16-12 UN | Steel | Trivalent Zinc | $27.97 | In stock | View |
| 2406-14-10 | 7/8" Female JIC Swivel x 5/8" Male JIC | — | — | Steel | — | $17.50 | In stock | View |
| 2406-14-12 | 7/8" Female JIC Swivel x 3/4" Male JIC | — | — | Steel | — | $19.85 | In stock | View |
| 2406-14-16 | 7/8" Female JIC Swivel | 1" Male JIC | 1-3/16-12 UN | Steel | Trivalent Zinc | $57.75 | In stock | View |
| 2406-16-04 | 1" Female JIC Swivel | 1/4" Male JIC | 1-5/16-12 UN | Steel | Trivalent Zinc | $23.21 | In stock | View |
| 2406-16-06 | 1" Female JIC Swivel | 3/8" Male JIC | 1-5/16-12 UN | Steel | Trivalent Zinc | $21.00 | In stock | View |
No parts on this page match the filter. or try the catalog search.
Full specifications for each part — connections, thread standards, configuration, and weight — are on the product page. To identify an unknown thread, see the thread identification guide and size charts.
