2501-L-FG

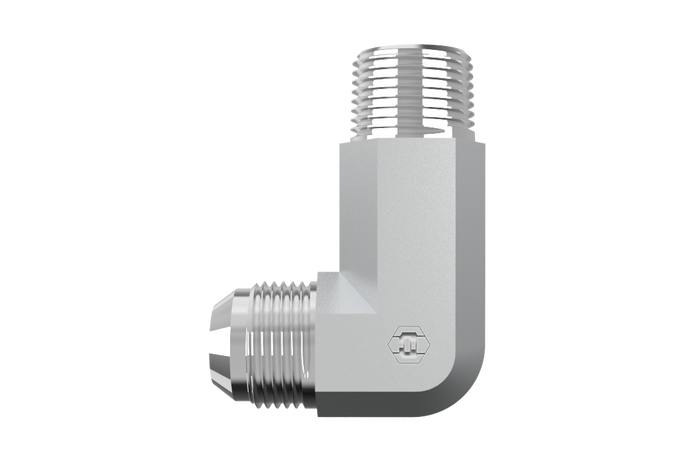

2501-L-FG carries a male JIC 37° flare tube end to a male NPTF pipe end in a 90-degree elbow with a long drop, forged as one piece for added mounting clearance.
- Shape
- Male Elbow
- Side 1
- Male JIC
- Side 2
- Male NPTF 30°
- Standard
- SAE J514 - Class 2A Thread / SAE J476
- Material
- Steel
- Plating
- Trivalent Zinc
- Part numbers
- 24 in this series
| Part Number | Side 1 | Side 2 | Thread | Material | Plating | Price | Stock | |
|---|---|---|---|---|---|---|---|---|
| 2501-L-03-02-FG | 3/16" Male JIC | 1/8" Male NPTF 30° | 3/8-24 UNF | Steel | Trivalent Zinc | $8.37 | In stock | View |
| 2501-L-04-02-FG | 1/4" Male JIC | 1/8" Male NPTF 30° | 7/16-20 UNF | Steel | Trivalent Zinc | $8.96 | In stock | View |
| 2501-L-04-04-FG | 1/4" Male JIC | 1/4" Male NPTF 30° | 7/16-20 UNF | Steel | Trivalent Zinc | $8.92 | In stock | View |
| 2501-L-05-02-FG | 5/16" Male JIC | 1/8" Male NPTF 30° | 1/2-20 UNF | Steel | Trivalent Zinc | $9.91 | In stock | View |
| 2501-L-05-04-FG | 5/16" Male JIC | 1/4" Male NPTF 30° | 1/2-20 UNF | Steel | Trivalent Zinc | $10.43 | In stock | View |
| 2501-L-06-02-FG | 3/8" Male JIC | 1/8" Male NPTF 30° | 9/16-18 UNF | Steel | Trivalent Zinc | $6.51 | In stock | View |
| 2501-L-06-04-FG | 3/8" Male JIC | 1/4" Male NPTF 30° | 9/16-18 UNF | Steel | Trivalent Zinc | $7.77 | In stock | View |
| 2501-L-06-06-FG | 3/8" Male JIC | 3/8" Male NPTF 30° | 9/16-18 UNF | Steel | Trivalent Zinc | $14.60 | In stock | View |
| 2501-L-06-08-FG | 3/8" Male JIC | 1/2" Male NPTF 30° | 9/16-18 UNF | Steel | Trivalent Zinc | $24.96 | In stock | View |
| 2501-L-08-04-FG | 1/2" Male JIC | 1/4" Male NPTF 30° | 3/4-16 UNF | Steel | Trivalent Zinc | $14.74 | In stock | View |
| 2501-L-08-06-FG | 1/2" Male JIC | 3/8" Male NPTF 30° | 3/4-16 UNF | Steel | Trivalent Zinc | $15.44 | In stock | View |
| 2501-L-08-08-FG | 1/2" Male JIC | 1/2" Male NPTF 30° | 3/4-16 UNF | Steel | Trivalent Zinc | $18.41 | In stock | View |
| 2501-L-08-12-FG | 1/2" Male JIC | 3/4" Male NPTF 30° | 3/4-16 UNF | Steel | Trivalent Zinc | $37.21 | In stock | View |
| 2501-L-10-08-FG | 5/8" Male JIC | 1/2" Male NPTF 30° | 7/8-14 UNF | Steel | Trivalent Zinc | $29.01 | In stock | View |
| 2501-L-10-12-FG | 5/8" Male JIC | 3/4" Male NPTF 30° | 7/8-14 UNF | Steel | Trivalent Zinc | $50.93 | In stock | View |
| 2501-L-12-08-FG | 3/4" Male JIC | 1/2" Male NPTF 30° | 1-1/16-12 UN | Steel | Trivalent Zinc | $55.06 | In stock | View |
| 2501-L-12-12-FG | 3/4" Male JIC | 3/4" Male NPTF 30° | 1-1/16-12 UN | Steel | Trivalent Zinc | $27.69 | In stock | View |
| 2501-L-12-16-FG | 3/4" Male JIC | 1" Male NPTF 30° | 1-1/16-12 UN | Steel | Trivalent Zinc | $37.49 | In stock | View |
| 2501-L-14-12-FG | 7/8" Male JIC | 3/4" Male NPTF 30° | 1-3/16-12 UN | Steel | Trivalent Zinc | $37.70 | In stock | View |
| 2501-L-16-12-FG | 1" Male JIC | 3/4" Male NPTF 30° | 1-5/16-12 UN | Steel | Trivalent Zinc | $45.99 | In stock | View |
| 2501-L-16-16-FG | 1" Male JIC | 1" Male NPTF 30° | 1-5/16-12 UN | Steel | Trivalent Zinc | $42.84 | In stock | View |
| 2501-L-20-20-FG | 1-1/4" Male JIC | 1-1/4" Male NPTF 30° | 1-5/8-12 UN | Steel | Trivalent Zinc | $114.38 | In stock | View |
| 2501-L-24-24-FG | 1-1/2" Male JIC | 1-1/2" Male NPTF 30° | 1-7/8-12 UN | Steel | Trivalent Zinc | $172.10 | In stock | View |
| 2501-L-32-32-FG | 2" Male JIC | 2" Male NPTF 30° | 2-1/2-12 UN | Steel | Trivalent Zinc | $292.78 | In stock | View |
No parts on this page match the filter. or try the catalog search.
Full specifications for each part — connections, thread standards, configuration, and weight — are on the product page. To identify an unknown thread, see the thread identification guide and size charts.
