2501-LLL-FG

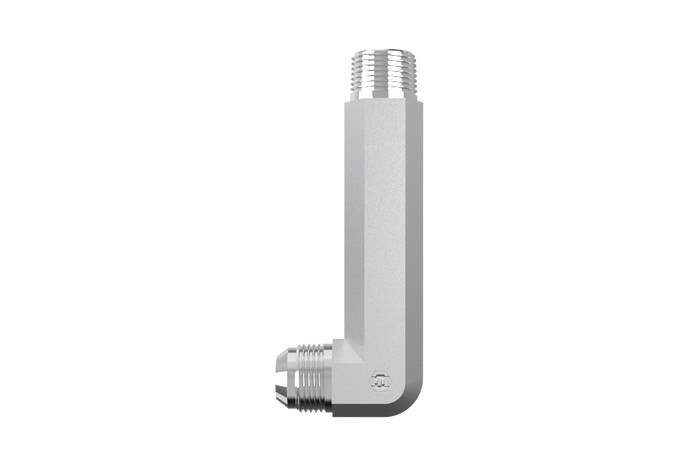

2501-LLL-FG joins a male JIC 37° flare tube end to a male NPTF pipe end in a 90-degree elbow with the longest drop in the family, forged from a single billet.
- Shape
- Male Elbow
- Side 1
- Male JIC
- Side 2
- Male NPTF 30°
- Standard
- SAE J514 - Class 2A Thread / SAE J476
- Material
- Steel
- Plating
- Trivalent Zinc
- Part numbers
- 11 in this series
| Part Number | Side 1 | Side 2 | Thread | Material | Plating | Price | Stock | |
|---|---|---|---|---|---|---|---|---|
| 2501-LLL-04-02-FG | 1/4" Male JIC | 1/8" Male NPTF 30° | 7/16-20 UNF | Steel | Trivalent Zinc | $17.43 | In stock | View |
| 2501-LLL-04-04-FG | 1/4" Male JIC | 1/4" Male NPTF 30° | 7/16-20 UNF | Steel | Trivalent Zinc | $19.22 | In stock | View |
| 2501-LLL-06-04-FG | 3/8" Male JIC | 1/4" Male NPTF 30° | 9/16-18 UNF | Steel | Trivalent Zinc | $17.89 | In stock | View |
| 2501-LLL-06-06-FG | 3/8" Male JIC | 3/8" Male NPTF 30° | 9/16-18 UNF | Steel | Trivalent Zinc | $28.39 | In stock | View |
| 2501-LLL-08-04-FG | 1/2" Male JIC | 1/4" Male NPTF 30° | 3/4-16 UNF | Steel | Trivalent Zinc | $43.05 | In stock | View |
| 2501-LLL-08-06-FG | 1/2" Male JIC | 3/8" Male NPTF 30° | 3/4-16 UNF | Steel | Trivalent Zinc | $39.17 | In stock | View |
| 2501-LLL-08-08-FG | 1/2" Male JIC | 1/2" Male NPTF 30° | 3/4-16 UNF | Steel | Trivalent Zinc | $52.64 | In stock | View |
| 2501-LLL-10-08-FG | 5/8" Male JIC | 1/2" Male NPTF 30° | 7/8-14 UNF | Steel | Trivalent Zinc | $52.71 | In stock | View |
| 2501-LLL-12-12-FG | 3/4" Male JIC | 3/4" Male NPTF 30° | 1-1/16-12 UN | Steel | Trivalent Zinc | $61.77 | In stock | View |
| 2501-LLL-16-16-FG | 1" Male JIC | 1" Male NPTF 30° | 1-5/16-12 UN | Steel | Trivalent Zinc | $161.32 | In stock | View |
| 2501-LLL-20-20-FG | 1-1/4" Male JIC | 1-1/4" Male NPTF 30° | 1-5/8-12 UN | Steel | Trivalent Zinc | $181.30 | In stock | View |
No parts on this page match the filter. or try the catalog search.
Full specifications for each part — connections, thread standards, configuration, and weight — are on the product page. To identify an unknown thread, see the thread identification guide and size charts.
