2502-FG

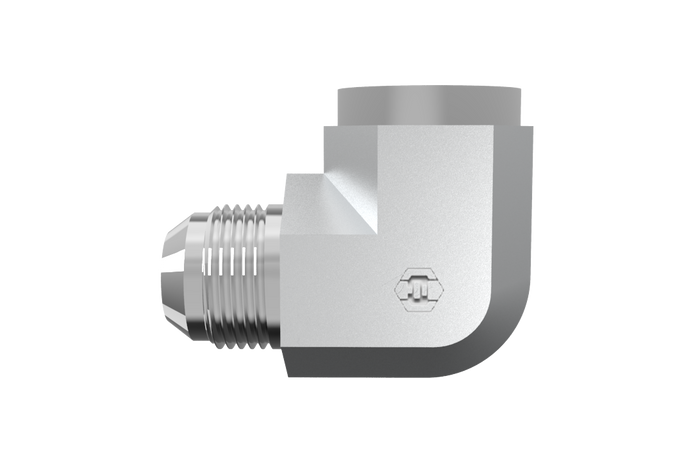

2502-FG adapts a male JIC 37° flare tube end to a female NPTF pipe end in a 90-degree elbow forged as one piece for SAE J514 to SAE J476 transitions.
- Shape
- Female Elbow
- Side 1
- Male JIC
- Side 2
- Female NPTF 30°
- Standard
- SAE J514 - Class 2A Thread / SAE J476
- Material
- Steel
- Plating
- Trivalent Zinc
- Part numbers
- 30 in this series
| Part Number | Side 1 | Side 2 | Thread | Material | Plating | Price | Stock | |
|---|---|---|---|---|---|---|---|---|
| 2502-02-02-FG | 1/8" Male JIC | 1/8" Female NPTF 30° | 5/16-24 UNF | Steel | Trivalent Zinc | $9.66 | In stock | View |
| 2502-03-02-FG | 3/16" Male JIC | 1/8" Female NPTF 30° | 3/8-24 UNF | Steel | Trivalent Zinc | $10.08 | In stock | View |
| 2502-04-02-FG | 1/4" Male JIC | 1/8" Female NPTF 30° | 7/16-20 UNF | Steel | Trivalent Zinc | $8.65 | In stock | View |
| 2502-04-04-FG | 1/4" Male JIC | 1/4" Female NPTF 30° | 7/16-20 UNF | Steel | Trivalent Zinc | $8.72 | In stock | View |
| 2502-04-06-FG | 1/4" Male JIC | 3/8" Female NPTF 30° | 7/16-20 UNF | Steel | Trivalent Zinc | $17.81 | In stock | View |
| 2502-04-08-FG | 1/4" Male JIC | 1/2" Female NPTF 30° | 7/16-20 UNF | Steel | Trivalent Zinc | $23.83 | In stock | View |
| 2502-05-02-FG | 5/16" Male JIC | 1/8" Female NPTF 30° | 1/2-20 UNF | Steel | Trivalent Zinc | $8.44 | In stock | View |
| 2502-05-04-FG | 5/16" Male JIC | 1/4" Female NPTF 30° | 1/2-20 UNF | Steel | Trivalent Zinc | $11.90 | In stock | View |
| 2502-05-06-FG | 5/16" Male JIC | 3/8" Female NPTF 30° | 1/2-20 UNF | Steel | Trivalent Zinc | $19.18 | In stock | View |
| 2502-06-02-FG | 3/8" Male JIC | 1/8" Female NPTF 30° | 9/16-18 UNF | Steel | Trivalent Zinc | $12.29 | In stock | View |
| 2502-06-04-FG | 3/8" Male JIC | 1/4" Female NPTF 30° | 9/16-18 UNF | Steel | Trivalent Zinc | $8.47 | In stock | View |
| 2502-06-06-FG | 3/8" Male JIC | 3/8" Female NPTF 30° | 9/16-18 UNF | Steel | Trivalent Zinc | $9.84 | In stock | View |
| 2502-06-08-FG | 3/8" Male JIC | 1/2" Female NPTF 30° | 9/16-18 UNF | Steel | Trivalent Zinc | $16.83 | In stock | View |
| 2502-08-04-FG | 1/2" Male JIC | 1/4" Female NPTF 30° | 3/4-16 UNF | Steel | Trivalent Zinc | $14.39 | In stock | View |
| 2502-08-06-FG | 1/2" Male JIC | 3/8" Female NPTF 30° | 3/4-16 UNF | Steel | Trivalent Zinc | $12.29 | In stock | View |
| 2502-08-08-FG | 1/2" Male JIC | 1/2" Female NPTF 30° | 3/4-16 UNF | Steel | Trivalent Zinc | $18.24 | In stock | View |
| 2502-08-12-FG | 1/2" Male JIC | 3/4" Female NPTF 30° | 3/4-16 UNF | Steel | Trivalent Zinc | $37.87 | In stock | View |
| 2502-10-06-FG | 5/8" Male JIC | 3/8" Female NPTF 30° | 7/8-14 UNF | Steel | Trivalent Zinc | $16.70 | In stock | View |
| 2502-10-08-FG | 5/8" Male JIC | 1/2" Female NPTF 30° | 7/8-14 UNF | Steel | Trivalent Zinc | $19.56 | In stock | View |
| 2502-10-12-FG | 5/8" Male JIC | 3/4" Female NPTF 30° | 7/8-14 UNF | Steel | Trivalent Zinc | $33.35 | In stock | View |
| 2502-12-08-FG | 3/4" Male JIC | 1/2" Female NPTF 30° | 1-1/16-12 UN | Steel | Trivalent Zinc | $23.73 | In stock | View |
| 2502-12-12-FG | 3/4" Male JIC | 3/4" Female NPTF 30° | 1-1/16-12 UN | Steel | Trivalent Zinc | $23.94 | In stock | View |
| 2502-12-16-FG | 3/4" Male JIC | 1" Female NPTF 30° | 1-1/16-12 UN | Steel | Trivalent Zinc | $37.00 | In stock | View |
| 2502-14-12-FG | 7/8" Male JIC | 3/4" Female NPTF 30° | 1-3/16-12 UN | Steel | Trivalent Zinc | $37.52 | In stock | View |
| 2502-16-12-FG | 1" Male JIC | 3/4" Female NPTF 30° | 1-5/16-12 UN | Steel | Trivalent Zinc | $45.15 | In stock | View |
| 2502-16-16-FG | 1" Male JIC | 1" Female NPTF 30° | 1-5/16-12 UN | Steel | Trivalent Zinc | $40.25 | In stock | View |
| 2502-16-20-FG | 1" Male JIC | 1-1/4" Female NPTF 30° | 1-5/16-12 UN | Steel | Trivalent Zinc | $92.16 | In stock | View |
| 2502-20-20-FG | 1-1/4" Male JIC | 1-1/4" Female NPTF 30° | 1-5/8-12 UN | Steel | Trivalent Zinc | $70.74 | In stock | View |
| 2502-24-24-FG | 1-1/2" Male JIC | 1-1/2" Female NPTF 30° | 1-7/8-12 UN | Steel | Trivalent Zinc | $114.77 | In stock | View |
| 2502-32-32-FG | 2" Male JIC | 2" Female NPTF 30° | 2-1/2-12 UN | Steel | Trivalent Zinc | $225.65 | In stock | View |
No parts on this page match the filter. or try the catalog search.
Full specifications for each part — connections, thread standards, configuration, and weight — are on the product page. To identify an unknown thread, see the thread identification guide and size charts.
