2503-FG

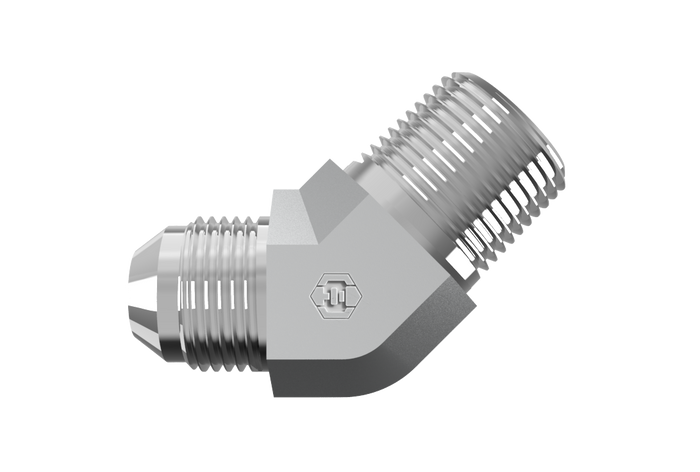

2503-FG couples a male JIC 37° flare tube end to a male NPTF pipe end in a 45-degree elbow, with the dry-seal pipe thread sealing on thread engagement.
- Shape
- Male Elbow
- Side 1
- Male JIC
- Side 2
- Male NPTF 30°
- Standard
- SAE J514 - Class 2A Thread / SAE J476
- Material
- Steel
- Plating
- Trivalent Zinc
- Part numbers
- 41 in this series
| Part Number | Side 1 | Side 2 | Thread | Material | Plating | Price | Stock | |
|---|---|---|---|---|---|---|---|---|
| 2503-02-01-FG | 1/8" Male JIC | 1/16" Male NPTF 30° | 5/16-24 UNF | Steel | Trivalent Zinc | $10.01 | In stock | View |
| 2503-02-02-FG | 1/8" Male JIC | 1/8" Male NPTF 30° | 5/16-24 UNF | Steel | Trivalent Zinc | $13.55 | In stock | View |
| 2503-03-02-FG | 3/16" Male JIC | 1/8" Male NPTF 30° | 3/8-24 UNF | Steel | Trivalent Zinc | $8.54 | In stock | View |
| 2503-04-02-FG | 1/4" Male JIC | 1/8" Male NPTF 30° | 7/16-20 UNF | Steel | Trivalent Zinc | $5.67 | In stock | View |
| 2503-04-04-FG | 1/4" Male JIC | 1/4" Male NPTF 30° | 7/16-20 UNF | Steel | Trivalent Zinc | $6.23 | In stock | View |
| 2503-04-06-FG | 1/4" Male JIC | 3/8" Male NPTF 30° | 7/16-20 UNF | Steel | Trivalent Zinc | $14.28 | In stock | View |
| 2503-04-08-FG | 1/4" Male JIC | 1/2" Male NPTF 30° | 7/16-20 UNF | Steel | Trivalent Zinc | $24.61 | In stock | View |
| 2503-05-02-FG | 5/16" Male JIC | 1/8" Male NPTF 30° | 1/2-20 UNF | Steel | Trivalent Zinc | $12.71 | In stock | View |
| 2503-05-04-FG | 5/16" Male JIC | 1/4" Male NPTF 30° | 1/2-20 UNF | Steel | Trivalent Zinc | $8.61 | In stock | View |
| 2503-05-06-FG | 5/16" Male JIC | 3/8" Male NPTF 30° | 1/2-20 UNF | Steel | Trivalent Zinc | $11.83 | In stock | View |
| 2503-06-02-FG | 3/8" Male JIC | 1/8" Male NPTF 30° | 9/16-18 UNF | Steel | Trivalent Zinc | $10.78 | In stock | View |
| 2503-06-04-FG | 3/8" Male JIC | 1/4" Male NPTF 30° | 9/16-18 UNF | Steel | Trivalent Zinc | $6.72 | In stock | View |
| 2503-06-06-FG | 3/8" Male JIC | 3/8" Male NPTF 30° | 9/16-18 UNF | Steel | Trivalent Zinc | $7.84 | In stock | View |
| 2503-06-08-FG | 3/8" Male JIC | 1/2" Male NPTF 30° | 9/16-18 UNF | Steel | Trivalent Zinc | $11.03 | In stock | View |
| 2503-06-12-FG | 3/8" Male JIC | 3/4" Male NPTF 30° | 9/16-18 UNF | Steel | Trivalent Zinc | $32.59 | In stock | View |
| 2503-08-04-FG | 1/2" Male JIC | 1/4" Male NPTF 30° | 3/4-16 UNF | Steel | Trivalent Zinc | $11.38 | In stock | View |
| 2503-08-06-FG | 1/2" Male JIC | 3/8" Male NPTF 30° | 3/4-16 UNF | Steel | Trivalent Zinc | $8.37 | In stock | View |
| 2503-08-08-FG | 1/2" Male JIC | 1/2" Male NPTF 30° | 3/4-16 UNF | Steel | Trivalent Zinc | $8.44 | In stock | View |
| 2503-08-12-FG | 1/2" Male JIC | 3/4" Male NPTF 30° | 3/4-16 UNF | Steel | Trivalent Zinc | $18.13 | In stock | View |
| 2503-08-16-FG | 1/2" Male JIC | 1" Male NPTF 30° | 3/4-16 UNF | Steel | Trivalent Zinc | $47.95 | In stock | View |
| 2503-10-04-FG | 5/8" Male JIC | 1/4" Male NPTF 30° | 7/8-14 UNF | Steel | Trivalent Zinc | $9.49 | In stock | View |
| 2503-10-06-FG | 5/8" Male JIC | 3/8" Male NPTF 30° | 7/8-14 UNF | Steel | Trivalent Zinc | $14.46 | In stock | View |
| 2503-10-08-FG | 5/8" Male JIC | 1/2" Male NPTF 30° | 7/8-14 UNF | Steel | Trivalent Zinc | $12.85 | In stock | View |
| 2503-10-12-FG | 5/8" Male JIC | 3/4" Male NPTF 30° | 7/8-14 UNF | Steel | Trivalent Zinc | $15.65 | In stock | View |
| 2503-12-06-FG | 3/4" Male JIC | 3/8" Male NPTF 30° | 1-1/16-12 UN | Steel | Trivalent Zinc | $15.26 | In stock | View |
| 2503-12-08-FG | 3/4" Male JIC | 1/2" Male NPTF 30° | 1-1/16-12 UN | Steel | Trivalent Zinc | $16.17 | In stock | View |
| 2503-12-12-FG | 3/4" Male JIC | 3/4" Male NPTF 30° | 1-1/16-12 UN | Steel | Trivalent Zinc | $17.08 | In stock | View |
| 2503-12-16-FG | 3/4" Male JIC | 1" Male NPTF 30° | 1-1/16-12 UN | Steel | Trivalent Zinc | $29.85 | In stock | View |
| 2503-12-20-FG | 3/4" Male JIC | 1-1/4" Male NPTF 30° | 1-1/16-12 UN | Steel | Trivalent Zinc | $71.02 | In stock | View |
| 2503-14-12-FG | 7/8" Male JIC | 3/4" Male NPTF 30° | 1-3/16-12 UN | Steel | Trivalent Zinc | $26.36 | In stock | View |
| 2503-16-08-FG | 1" Male JIC | 1/2" Male NPTF 30° | 1-5/16-12 UN | Steel | Trivalent Zinc | $103.78 | In stock | View |
| 2503-16-12-FG | 1" Male JIC | 3/4" Male NPTF 30° | 1-5/16-12 UN | Steel | Trivalent Zinc | $23.49 | In stock | View |
| 2503-16-16-FG | 1" Male JIC | 1" Male NPTF 30° | 1-5/16-12 UN | Steel | Trivalent Zinc | $23.10 | In stock | View |
| 2503-16-20-FG | 1" Male JIC | 1-1/4" Male NPTF 30° | 1-5/16-12 UN | Steel | Trivalent Zinc | $64.96 | In stock | View |
| 2503-20-16-FG | 1-1/4" Male JIC | 1" Male NPTF 30° | 1-5/8-12 UN | Steel | Trivalent Zinc | $87.50 | In stock | View |
| 2503-20-20-FG | 1-1/4" Male JIC | 1-1/4" Male NPTF 30° | 1-5/8-12 UN | Steel | Trivalent Zinc | $46.83 | In stock | View |
| 2503-20-24-FG | 1-1/4" Male JIC | 1-1/2" Male NPTF 30° | 1-5/8-12 UN | Steel | Trivalent Zinc | $92.23 | In stock | View |
| 2503-24-20-FG | 1-1/2" Male JIC | 1-1/4" Male NPTF 30° | 1-7/8-12 UN | Steel | Trivalent Zinc | $141.44 | In stock | View |
| 2503-24-24-FG | 1-1/2" Male JIC | 1-1/2" Male NPTF 30° | 1-7/8-12 UN | Steel | Trivalent Zinc | $68.43 | In stock | View |
| 2503-32-32-FG | 2" Male JIC | 2" Male NPTF 30° | 2-1/2-12 UN | Steel | Trivalent Zinc | $182.49 | In stock | View |
| 2503-40-40-FG | 2-1/2" Male JIC | 2-1/2" Male NPTF 30° | 3-12 UN | Steel | Trivalent Zinc | $662.62 | In stock | View |
