5701-FG

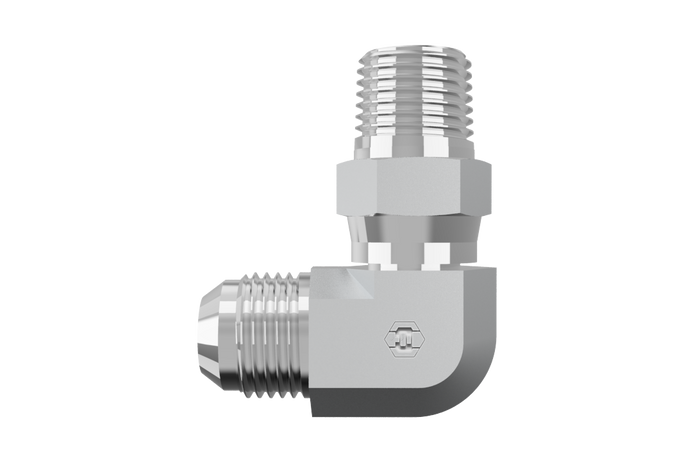

5701-FG bends a male JIC 37° flare tube end into a male NPTF pipe swivel end at 90 degrees, letting the pipe leg be aimed after the flare joint is made.
- Shape
- Swivel Elbow, Male
- Side 1
- Male JIC
- Side 2
- Male NPTF 30° Swivel
- Standard
- SAE J514 - Class 2A Thread / SAE J476
- Material
- Steel
- Plating
- Trivalent Zinc
- Part numbers
- 7 in this series
| Part Number | Side 1 | Side 2 | Thread | Material | Plating | Price | Stock | |
|---|---|---|---|---|---|---|---|---|
| 5701-04-04-FG | 1/4" Male JIC | 1/4" Male NPTF 30° Swivel | 7/16-20 UNF | Steel | Trivalent Zinc | $22.44 | In stock | View |
| 5701-06-04-FG | 3/8" Male JIC | 1/4" Male NPTF 30° Swivel | 9/16-18 UNF | Steel | Trivalent Zinc | $42.88 | In stock | View |
| 5701-06-06-FG | 3/8" Male JIC | 3/8" Male NPTF 30° Swivel | 9/16-18 UNF | Steel | Trivalent Zinc | $26.99 | In stock | View |
| 5701-08-06-FG | 1/2" Male JIC | 3/8" Male NPTF 30° Swivel | 3/4-16 UNF | Steel | Trivalent Zinc | $60.13 | In stock | View |
| 5701-08-08-FG | 1/2" Male JIC | 1/2" Male NPTF 30° Swivel | 3/4-16 UNF | Steel | Trivalent Zinc | $38.47 | In stock | View |
| 5701-10-08-FG | 5/8" Male JIC | 1/2" Male NPTF 30° Swivel | 7/8-14 UNF | Steel | Trivalent Zinc | $73.50 | In stock | View |
| 5701-12-12-FG | 3/4" Male JIC | 3/4" Male NPTF 30° Swivel | 1-1/16-12 UN | Steel | Trivalent Zinc | $85.89 | In stock | View |
No parts on this page match the filter. or try the catalog search.
Full specifications for each part — connections, thread standards, configuration, and weight — are on the product page. To identify an unknown thread, see the thread identification guide and size charts.
