6801-L-NWO-FG

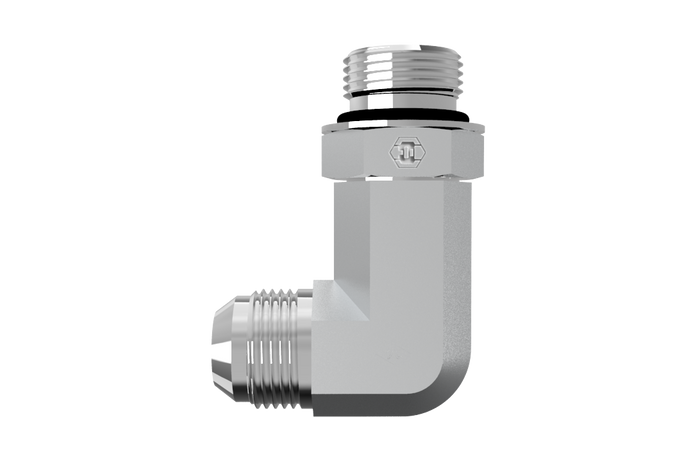

6801-L-NWO-FG joins a male JIC 37° flare tube end to an adjustable SAE O-ring boss stud end in a long-drop 90-degree elbow, forged one-piece and supplied with nut, washer and O-ring.
- Shape
- Adjustable Elbow
- Side 1
- Male JIC
- Side 2
- Male Adjustable O-Ring Boss
- Standard
- SAE J514 - Class 2A Thread / SAE J1453 / J514
- Material
- Steel
- Plating
- Trivalent Zinc
- Part numbers
- 20 in this series
| Part Number | Side 1 | Side 2 | Thread | Material | Plating | Price | Stock | |
|---|---|---|---|---|---|---|---|---|
| 6801-L-04-04-NWO-FG | 1/4" Male JIC | 7/16-20 Male Adjustable O-Ring Boss | 7/16-20 UNF | Steel | Trivalent Zinc | $9.38 | In stock | View |
| 6801-L-04-06-NWO-FG | 1/4" Male JIC | 9/16-18 Male Adjustable O-Ring Boss | 7/16-20 UNF | Steel | Trivalent Zinc | $13.34 | In stock | View |
| 6801-L-05-04-NWO-FG | 5/16" Male JIC | 7/16-20 Male Adjustable O-Ring Boss | 1/2-20 UNF | Steel | Trivalent Zinc | $14.94 | In stock | View |
| 6801-L-05-06-NWO-FG | 5/16" Male JIC | 9/16-18 Male Adjustable O-Ring Boss | 1/2-20 UNF | Steel | Trivalent Zinc | $20.65 | In stock | View |
| 6801-L-06-04-NWO-FG | 3/8" Male JIC | 7/16-20 Male Adjustable O-Ring Boss | 9/16-18 UNF | Steel | Trivalent Zinc | $16.17 | In stock | View |
| 6801-L-06-06-NWO-FG | 3/8" Male JIC | 9/16-18 Male Adjustable O-Ring Boss | 9/16-18 UNF | Steel | Trivalent Zinc | $10.71 | In stock | View |
| 6801-L-06-08-NWO-FG | 3/8" Male JIC | 3/4-16 Male Adjustable O-Ring Boss | 9/16-18 UNF | Steel | Trivalent Zinc | $28.18 | In stock | View |
| 6801-L-08-06-NWO-FG | 1/2" Male JIC | 9/16-18 Male Adjustable O-Ring Boss | 3/4-16 UNF | Steel | Trivalent Zinc | $31.92 | In stock | View |
| 6801-L-08-08-NWO-FG | 1/2" Male JIC | 3/4-16 Male Adjustable O-Ring Boss | 3/4-16 UNF | Steel | Trivalent Zinc | $18.45 | In stock | View |
| 6801-L-08-10-NWO-FG | 1/2" Male JIC | 7/8-14 Male Adjustable O-Ring Boss | 3/4-16 UNF | Steel | Trivalent Zinc | $22.37 | In stock | View |
| 6801-L-10-06-NWO-FG | 5/8" Male JIC | 9/16-18 Male Adjustable O-Ring Boss | 7/8-14 UNF | Steel | Trivalent Zinc | $32.27 | In stock | View |
| 6801-L-10-08-NWO-FG | 5/8" Male JIC | 3/4-16 Male Adjustable O-Ring Boss | 7/8-14 UNF | Steel | Trivalent Zinc | $25.58 | In stock | View |
| 6801-L-10-10-NWO-FG | 5/8" Male JIC | 7/8-14 Male Adjustable O-Ring Boss | 7/8-14 UNF | Steel | Trivalent Zinc | $21.42 | In stock | View |
| 6801-L-10-12-NWO-FG | 5/8" Male JIC | 1-1/16-12 Male Adjustable O-Ring Boss | 7/8-14 UNF | Steel | Trivalent Zinc | $38.40 | In stock | View |
| 6801-L-12-10-NWO-FG | 3/4" Male JIC | 7/8-14 Male Adjustable O-Ring Boss | 1-1/16-12 UN | Steel | Trivalent Zinc | $45.15 | In stock | View |
| 6801-L-12-12-NWO-FG | 3/4" Male JIC | 1-1/16-12 Male Adjustable O-Ring Boss | 1-1/16-12 UN | Steel | Trivalent Zinc | $34.65 | In stock | View |
| 6801-L-16-12-NWO-FG | 1" Male JIC | 1-1/16-12 Male Adjustable O-Ring Boss | 1-5/16-12 UN | Steel | Trivalent Zinc | $48.97 | In stock | View |
| 6801-L-16-16-NWO-FG | 1" Male JIC | 1-5/16-12 Male Adjustable O-Ring Boss | 1-5/16-12 UN | Steel | Trivalent Zinc | $43.26 | In stock | View |
| 6801-L-20-20-NWO-FG | 1-1/4" Male JIC | 1-5/8-12 Male Adjustable O-Ring Boss | 1-5/8-12 UN | Steel | Trivalent Zinc | $102.62 | In stock | View |
| 6801-L-24-24-NWO-FG | 1-1/2" Male JIC | 1-7/8-12 Male Adjustable O-Ring Boss | 1-7/8-12 UN | Steel | Trivalent Zinc | $301.25 | In stock | View |
No parts on this page match the filter. or try the catalog search.
Full specifications for each part — connections, thread standards, configuration, and weight — are on the product page. To identify an unknown thread, see the thread identification guide and size charts.
