6801-LL-NWO-FG

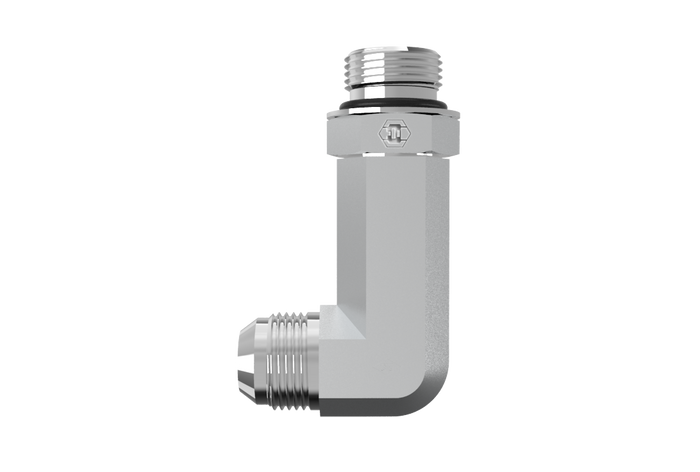

6801-LL-NWO-FG links a male JIC 37° flare tube end with an adjustable SAE O-ring boss stud end through an extra-long 90-degree elbow, forged from one piece and shipped with nut, washer and O-ring.
- Shape
- Adjustable Elbow
- Side 1
- Male JIC
- Side 2
- Male Adjustable O-Ring Boss
- Standard
- SAE J514 - Class 2A Thread / SAE J1453 / J514
- Material
- Steel
- Plating
- Trivalent Zinc
- Part numbers
- 16 in this series
| Part Number | Side 1 | Side 2 | Thread | Material | Plating | Price | Stock | |
|---|---|---|---|---|---|---|---|---|
| 6801-LL-04-04-NWO-FG | 1/4" Male JIC | 7/16-20 Male Adjustable O-Ring Boss | 7/16-20 UNF | Steel | Trivalent Zinc | $7.53 | In stock | View |
| 6801-LL-04-06-NWO-FG | 1/4" Male JIC | 9/16-18 Male Adjustable O-Ring Boss | 7/16-20 UNF | Steel | Trivalent Zinc | $12.57 | In stock | View |
| 6801-LL-06-06-NWO-FG | 3/8" Male JIC | 9/16-18 Male Adjustable O-Ring Boss | 9/16-18 UNF | Steel | Trivalent Zinc | $12.92 | In stock | View |
| 6801-LL-06-08-NWO-FG | 3/8" Male JIC | 3/4-16 Male Adjustable O-Ring Boss | 9/16-18 UNF | Steel | Trivalent Zinc | $21.60 | In stock | View |
| 6801-LL-08-06-NWO-FG | 1/2" Male JIC | 9/16-18 Male Adjustable O-Ring Boss | 3/4-16 UNF | Steel | Trivalent Zinc | $22.82 | In stock | View |
| 6801-LL-08-08-NWO-FG | 1/2" Male JIC | 3/4-16 Male Adjustable O-Ring Boss | 3/4-16 UNF | Steel | Trivalent Zinc | $14.18 | In stock | View |
| 6801-LL-08-10-NWO-FG | 1/2" Male JIC | 7/8-14 Male Adjustable O-Ring Boss | 3/4-16 UNF | Steel | Trivalent Zinc | $22.30 | In stock | View |
| 6801-LL-08-12-NWO-FG | 1/2" Male JIC | 1-1/16-12 Male Adjustable O-Ring Boss | 3/4-16 UNF | Steel | Trivalent Zinc | $54.25 | In stock | View |
| 6801-LL-10-08-NWO-FG | 5/8" Male JIC | 3/4-16 Male Adjustable O-Ring Boss | 7/8-14 UNF | Steel | Trivalent Zinc | $24.78 | In stock | View |
| 6801-LL-10-10-NWO-FG | 5/8" Male JIC | 7/8-14 Male Adjustable O-Ring Boss | 7/8-14 UNF | Steel | Trivalent Zinc | $30.70 | In stock | View |
| 6801-LL-12-10-NWO-FG | 3/4" Male JIC | 7/8-14 Male Adjustable O-Ring Boss | 1-1/16-12 UN | Steel | Trivalent Zinc | $33.46 | In stock | View |
| 6801-LL-12-12-NWO-FG | 3/4" Male JIC | 1-1/16-12 Male Adjustable O-Ring Boss | 1-1/16-12 UN | Steel | Trivalent Zinc | $33.46 | In stock | View |
| 6801-LL-12-16-NWO-FG | 3/4" Male JIC | 1-5/16-12 Male Adjustable O-Ring Boss | 1-1/16-12 UN | Steel | Trivalent Zinc | $105.91 | In stock | View |
| 6801-LL-16-12-NWO-FG | 1" Male JIC | 1-1/16-12 Male Adjustable O-Ring Boss | 1-5/16-12 UN | Steel | Trivalent Zinc | $93.14 | In stock | View |
| 6801-LL-16-16-NWO-FG | 1" Male JIC | 1-5/16-12 Male Adjustable O-Ring Boss | 1-5/16-12 UN | Steel | Trivalent Zinc | $103.29 | In stock | View |
| 6801-LL-20-20-NWO-FG | 1-1/4" Male JIC | 1-5/8-12 Male Adjustable O-Ring Boss | 1-5/8-12 UN | Steel | Trivalent Zinc | $129.75 | In stock | View |
No parts on this page match the filter. or try the catalog search.
Full specifications for each part — connections, thread standards, configuration, and weight — are on the product page. To identify an unknown thread, see the thread identification guide and size charts.
