6809-NWO-FG

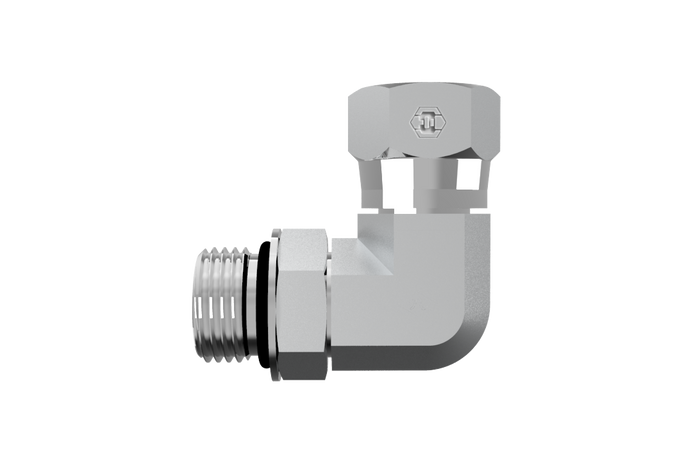

6809-NWO-FG routes an adjustable SAE O-ring boss stud end into a female JIC 37° swivel end through a 90-degree elbow, forged one-piece and supplied with nut, washer and O-ring.
- Shape
- Adjustable Swivel Elbow
- Side 1
- Male Adjustable O-Ring Boss
- Side 2
- Female JIC Swivel
- Standard
- SAE J1453 / J514 / SAE J514 - Class 2B Thread
- Material
- Steel
- Plating
- Trivalent Zinc
- Part numbers
- 15 in this series
| Part Number | Side 1 | Side 2 | Thread | Material | Plating | Price | Stock | |
|---|---|---|---|---|---|---|---|---|
| 6809-04-04-NWO-FG | 7/16-20 Male Adjustable O-Ring Boss | 1/4" Female JIC Swivel | 7/16-20 UNF | Steel | Trivalent Zinc | $13.97 | In stock | View |
| 6809-04-06-NWO-FG | 7/16-20 Male Adjustable O-Ring Boss | 3/8" Female JIC Swivel | 7/16-20 UNF | Steel | Trivalent Zinc | $17.08 | In stock | View |
| 6809-06-04-NWO-FG | 9/16-18 Male Adjustable O-Ring Boss | 1/4" Female JIC Swivel | 9/16-18 UNF | Steel | Trivalent Zinc | $16.38 | In stock | View |
| 6809-06-06-NWO-FG | 9/16-18 Male Adjustable O-Ring Boss | 3/8" Female JIC Swivel | 9/16-18 UNF | Steel | Trivalent Zinc | $13.51 | In stock | View |
| 6809-06-08-NWO-FG | 9/16-18 Male Adjustable O-Ring Boss | 1/2" Female JIC Swivel | 9/16-18 UNF | Steel | Trivalent Zinc | $18.76 | In stock | View |
| 6809-08-06-NWO-FG | 3/4-16 Male Adjustable O-Ring Boss | 3/8" Female JIC Swivel | 3/4-16 UNF | Steel | Trivalent Zinc | $16.97 | In stock | View |
| 6809-08-08-NWO-FG | 3/4-16 Male Adjustable O-Ring Boss | 1/2" Female JIC Swivel | 3/4-16 UNF | Steel | Trivalent Zinc | $17.89 | In stock | View |
| 6809-10-08-NWO-FG | 7/8-14 Male Adjustable O-Ring Boss | 1/2" Female JIC Swivel | 7/8-14 UNF | Steel | Trivalent Zinc | $27.51 | In stock | View |
| 6809-10-10-NWO-FG | 7/8-14 Male Adjustable O-Ring Boss | 5/8" Female JIC Swivel | 7/8-14 UNF | Steel | Trivalent Zinc | $31.29 | In stock | View |
| 6809-12-10-NWO-FG | 1-1/16-12 Male Adjustable O-Ring Boss | 5/8" Female JIC Swivel | 1-1/16-12 UN | Steel | Trivalent Zinc | $27.55 | In stock | View |
| 6809-12-12-NWO-FG | 1-1/16-12 Male Adjustable O-Ring Boss | 3/4" Female JIC Swivel | 1-1/16-12 UN | Steel | Trivalent Zinc | $29.75 | In stock | View |
| 6809-16-16-NWO-FG | 1-5/16-12 Male Adjustable O-Ring Boss | 1" Female JIC Swivel | 1-5/16-12 UN | Steel | Trivalent Zinc | $45.43 | In stock | View |
| 6809-20-20-NWO-FG | 1-5/8-12 Male Adjustable O-Ring Boss | 1-1/4" Female JIC Swivel | 1-5/8-12 UN | Steel | Trivalent Zinc | $77.70 | In stock | View |
| 6809-24-24-NWO-FG | 1-7/8-12 Male Adjustable O-Ring Boss | 1-1/2" Female JIC Swivel | 1-7/8-12 UN | Steel | Trivalent Zinc | $193.66 | In stock | View |
| 6809-32-32-NWO-FG | 2-1/2-12 Male Adjustable O-Ring Boss | 2" Female JIC Swivel | 2-1/2-12 UN | Steel | Trivalent Zinc | $342.16 | In stock | View |
No parts on this page match the filter. or try the catalog search.
Full specifications for each part — connections, thread standards, configuration, and weight — are on the product page. To identify an unknown thread, see the thread identification guide and size charts.
