7200-FG

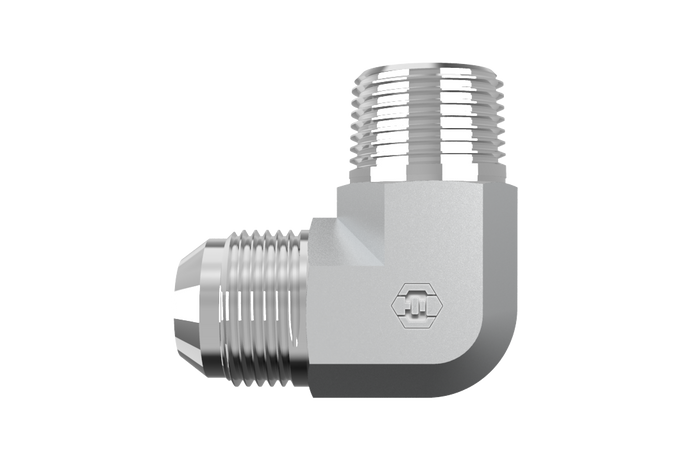

7200-FG turns a male JIC 37° flare tube end through 90 degrees to meet a male BSPT tapered pipe end, in a forged one-piece elbow body.
- Material
- Steel
- Part numbers
- 26 in this series
| Part Number | Connection | Material | Price | Stock | |
|---|---|---|---|---|---|
| 7200-04-02-FG | 1/4" Male JIC x 1/8" Male BSPT | Steel | $25.52 | In stock | View |
| 7200-04-04-FG | 1/4" Male JIC x 1/4" Male BSPT | Steel | $21.98 | In stock | View |
| 7200-04-06-FG | 1/4" Male JIC x 3/8" Male BSPT | Steel | $17.19 | In stock | View |
| 7200-05-02-FG | 5/16" Male JIC x 1/8" Male BSPT | Steel | $18.10 | In stock | View |
| 7200-05-04-FG | 5/16" Male JIC x 1/4" Male BSPT | Steel | $26.88 | In stock | View |
| 7200-06-02-FG | 3/8" Male JIC x 1/8" Male BSPT | Steel | $16.38 | In stock | View |
| 7200-06-04-FG | 3/8" Male JIC x 1/4" Male BSPT | Steel | $17.15 | In stock | View |
| 7200-06-06-FG | 3/8" Male JIC x 3/8" Male BSPT | Steel | $17.05 | In stock | View |
| 7200-06-08-FG | 3/8" Male JIC x 1/2" Male BSPT | Steel | $23.70 | In stock | View |
| 7200-08-04-FG | 1/2" Male JIC x 1/4" Male BSPT | Steel | $32.20 | In stock | View |
| 7200-08-06-FG | 1/2" Male JIC x 3/8" Male BSPT | Steel | $32.20 | In stock | View |
| 7200-08-08-FG | 1/2" Male JIC x 1/2" Male BSPT | Steel | $30.87 | In stock | View |
| 7200-08-12-FG | 1/2" Male JIC x 3/4" Male BSPT | Steel | $31.08 | In stock | View |
| 7200-10-06-FG | 5/8" Male JIC x 3/8" Male BSPT | Steel | $31.64 | In stock | View |
| 7200-10-08-FG | 5/8" Male JIC x 1/2" Male BSPT | Steel | $31.89 | In stock | View |
| 7200-10-12-FG | 5/8" Male JIC x 3/4" Male BSPT | Steel | $41.93 | In stock | View |
| 7200-12-08-FG | 3/4" Male JIC x 1/2" Male BSPT | Steel | $50.12 | In stock | View |
| 7200-12-12-FG | 3/4" Male JIC x 3/4" Male BSPT | Steel | $39.31 | In stock | View |
| 7200-12-16-FG | 3/4" Male JIC x 1" Male BSPT | Steel | $101.68 | In stock | View |
| 7200-16-12-FG | 1" Male JIC x 3/4" Male BSPT | Steel | $88.73 | In stock | View |
| 7200-16-16-FG | 1" Male JIC x 1" Male BSPT | Steel | $85.68 | In stock | View |
| 7200-20-16-FG | 1-1/4" Male JIC x 1" Male BSPT | Steel | $86.66 | In stock | View |
| 7200-20-20-FG | 1-1/4" Male JIC x 1-1/4" Male BSPT | Steel | $115.64 | In stock | View |
| 7200-24-20-FG | 1-1/2" Male JIC x 1-1/4" Male BSPT | Steel | $205.91 | In stock | View |
| 7200-24-24-FG | 1-1/2" Male JIC x 1-1/2" Male BSPT | Steel | $226.17 | In stock | View |
| 7200-32-32-FG | 2" Male JIC x 2" Male BSPT | Steel | $226.10 | In stock | View |
No parts on this page match the filter. or try the catalog search.
Full specifications for each part — connections, thread standards, configuration, and weight — are on the product page. To identify an unknown thread, see the thread identification guide and size charts.
