JIC 37° Flare Fittings · 0306 family
0306-04-SS

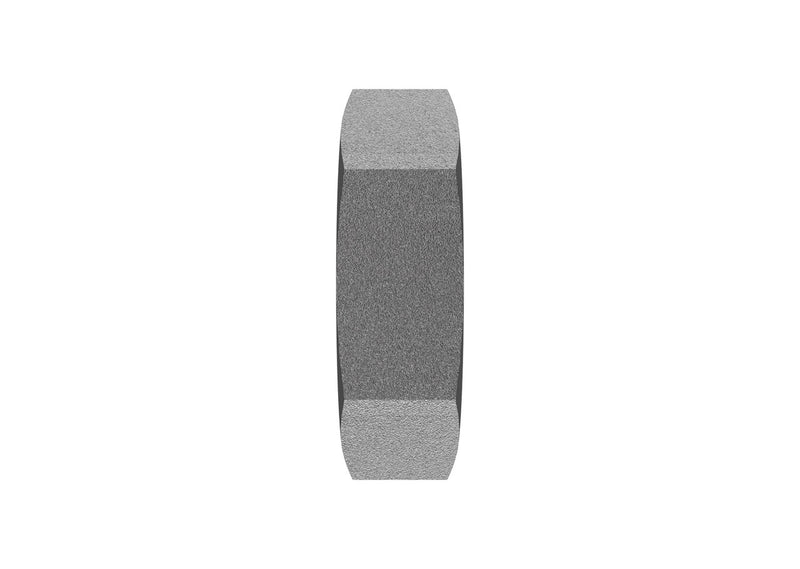

1/4" JIC Locknut · Lock Nut
$2.17
per pieceIn stock
- Side 1
- 1/4" JIC Locknut
- Material
- Stainless Steel
- Thread
- 7/16-20 UNF
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11/4" JIC Locknut
Thread Type7/16-20 UNF
Tube OD1/4"
MaterialStainless Steel
ConfigurationLock Nut
StandardSAE J514
0306-04-SS is a 1/4" JIC Locknut in the 0306 Series. For assembly with 37° flare bulkhead fittings to secure them through panels or walls.
Specifications
| Part Number | 0306-04-SS |
|---|---|
| Series | 0306 |
| Product Type | Lock Nut |
| Side 1 Connection | 1/4" JIC Locknut |
| Tube OD | 1/4" |
| Thread Type (Side 1) | 7/16-20 UNF |
| Material | Stainless Steel |
| Standard (Side 1) | SAE J514 |
| Weight | 0.02 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1/4" JIC Locknut
- Thread7/16-20 UNF
- Tube OD1/4"
- StandardSAE J514
Construction
- MaterialStainless Steel
- ConfigurationLock Nut
- Weight0.02 lb
Product Family
CategoryJIC 37° Flare Fittings
Family0306
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 259-210212-4 | 0306-04-SS |
| Parker (Triple-Lok / TFD) | 4 WLN-SS | 0306-04-SS |
| Sae | SAE J514 4 070118S | 0306-04-SS |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
