JIC 37° Flare Fittings · 0306 family
0306-08-B

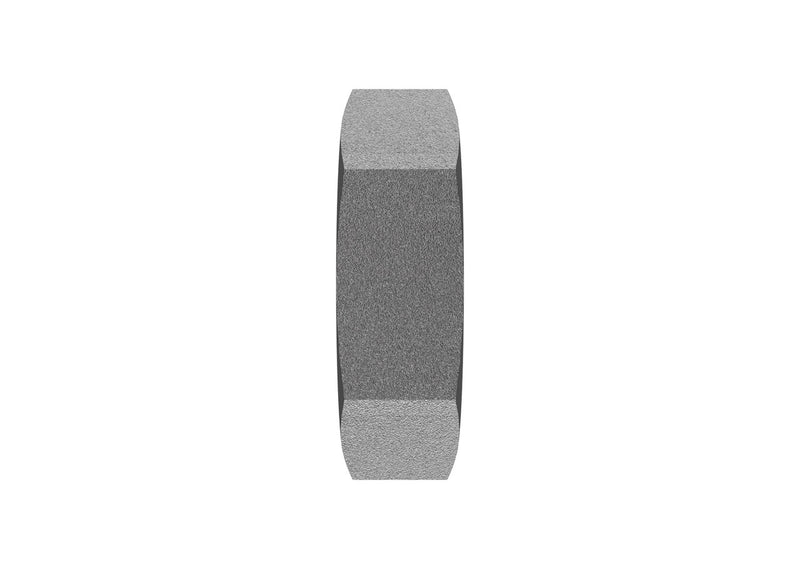

1/2" JIC Locknut · Nut, Locking
$9.87
per pieceIn stock
- Side 1
- 1/2" JIC Locknut
- Material
- Brass
- Plating
- Natural Finish
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11/2" JIC Locknut
Thread Type3/4-16 UNF
Tube OD1/2"
MaterialBrass
Plating / FinishNatural Finish
ConfigurationNut, Locking
StandardSAE J514
0306-08-B is a 1/2" JIC Locknut in the 0306 Series. 0306 is a JIC locknut that threads onto a 37° flare bulkhead fitting and clamps it against a panel or bulkhead wall to lock the mounting.
Specifications
| Part Number | 0306-08-B |
|---|---|
| Series | 0306 |
| Product Type | Nut, Locking |
| Side 1 Connection | 1/2" JIC Locknut |
| Tube OD | 1/2" |
| Thread Type (Side 1) | 3/4-16 UNF |
| Material | Brass |
| Finish / Plating | Natural Finish |
| Standard (Side 1) | SAE J514 |
| Weight | 0.04 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1/2" JIC Locknut
- Thread3/4-16 UNF
- Tube OD1/2"
- StandardSAE J514
Construction
- MaterialBrass
- PlatingNatural Finish
- ConfigurationNut, Locking
- Weight0.04 lb
Product Family
CategoryJIC 37° Flare Fittings
Family0306
Cross Reference
| Brand | Part Number | Higher Fittings Equivalent |
|---|---|---|
| Parker (Triple-Lok / TFD) | 8 WLN-B | 0306-08-B |
| Sae | SAE J514 8 070118B | 0306-08-B |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
