JIC 37° Flare Fittings · 0306 family
0306-12-SS

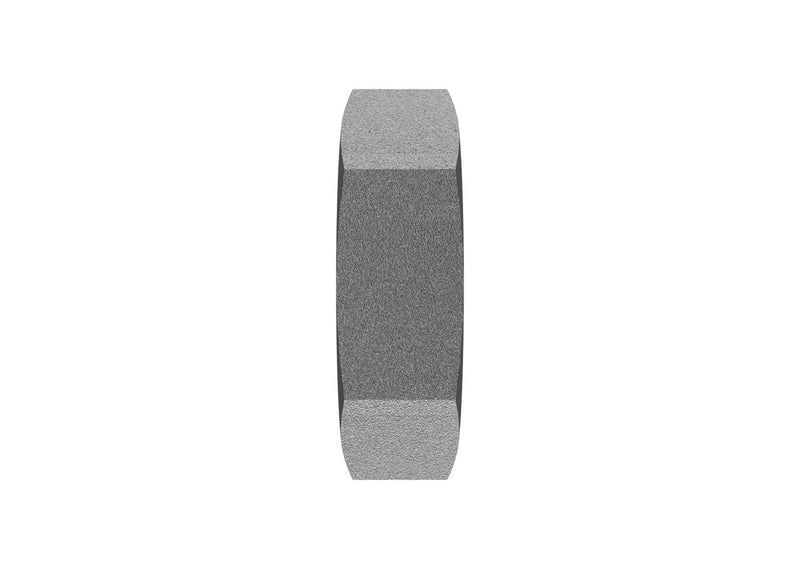

3/4" JIC Locknut · Nut, Locking
$27.97
per pieceIn stock
- Side 1
- 3/4" JIC Locknut
- Material
- Stainless Steel
- Thread
- 1-1/16-12 UN
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 13/4" JIC Locknut
Thread Type1-1/16-12 UN
Tube OD3/4"
MaterialStainless Steel
ConfigurationNut, Locking
StandardSAE J514
0306-12-SS is a 3/4" JIC Locknut in the 0306 Series. 0306 is a JIC locknut that threads onto a 37° flare bulkhead fitting and clamps it against a panel or bulkhead wall to lock the mounting.
Specifications
| Part Number | 0306-12-SS |
|---|---|
| Series | 0306 |
| Product Type | Nut, Locking |
| Side 1 Connection | 3/4" JIC Locknut |
| Tube OD | 3/4" |
| Thread Type (Side 1) | 1-1/16-12 UN |
| Material | Stainless Steel |
| Standard (Side 1) | SAE J514 |
| Weight | 0.10 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
3/4" JIC Locknut
- Thread1-1/16-12 UN
- Tube OD3/4"
- StandardSAE J514
Construction
- MaterialStainless Steel
- ConfigurationNut, Locking
- Weight0.10 lb
Product Family
CategoryJIC 37° Flare Fittings
Family0306
Cross Reference
| Brand | Part Number | Higher Fittings Equivalent |
|---|---|---|
| Aeroquip | 259-210212-12 | 0306-12-SS |
| Parker (Triple-Lok / TFD) | 12 WLN-SS | 0306-12-SS |
| Sae | SAE J514 12 070118S | 0306-12-SS |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
