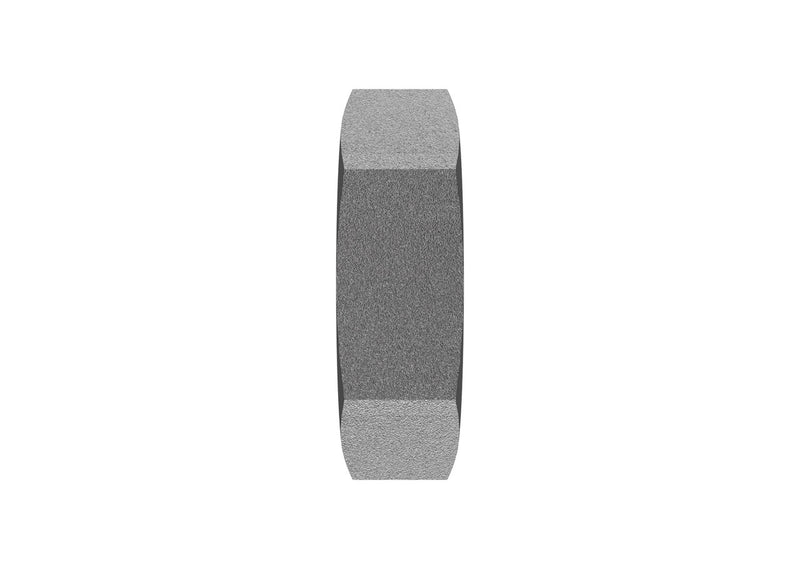

JIC 37° Flare Fittings · 0306 family
0306-32
2" JIC Locknut · Lock Nut
$5.21
per pieceIn stock
- Side 1
- 2" JIC Locknut
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 12" JIC Locknut
Thread Type2-1/2-12 UN
Tube OD2"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationLock Nut
StandardSAE J514
0306-32 is a 2" JIC Locknut in the 0306 Series. For assembly with 37° flare bulkhead fittings to secure them through panels or walls.
Specifications
| Part Number | 0306-32 |
|---|---|
| Series | 0306 |
| Product Type | Lock Nut |
| Side 1 Connection | 2" JIC Locknut |
| Tube OD | 2" |
| Thread Type (Side 1) | 2-1/2-12 UN |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 |
| Weight | 0.20 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
2" JIC Locknut
- Thread2-1/2-12 UN
- Tube OD2"
- StandardSAE J514
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationLock Nut
- Weight0.20 lb
Product Family
CategoryJIC 37° Flare Fittings
Family0306
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 210212-32S | 0306-32 |
| Parker (Triple-Lok / TFD) | 32 WLN-S | 0306-32 |
| Sae | SAE J514 32 070118C | 0306-32 |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
