JIC 37° Flare Fittings · 0318 family
0318-05

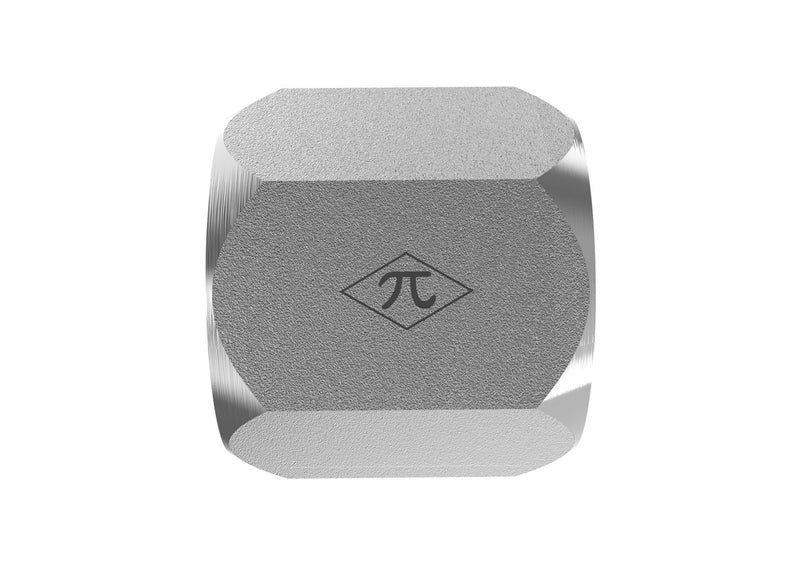

5/16" JIC Tube Nut · Tube Nut
$0.88
per pieceIn stock
- Side 1
- 5/16" JIC Tube Nut
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 15/16" JIC Tube Nut
Thread Type1/2-20
Tube OD5/16"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationTube Nut
StandardSAE J514
0318-05 is a 5/16" JIC Tube Nut in the 0318 Series. For assembly with 37° flared tube sleeve, male 37° flare fitting, and flared tube, to create a reliable tube connection.
Specifications
| Part Number | 0318-05 |
|---|---|
| Series | 0318 |
| Product Type | Tube Nut |
| Side 1 Connection | 5/16" JIC Tube Nut |
| Tube OD | 5/16" |
| Thread Type (Side 1) | 1/2-20 |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 |
| Weight | 0.03 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
5/16" JIC Tube Nut
- Thread1/2-20
- Tube OD5/16"
- StandardSAE J514
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationTube Nut
- Weight0.03 lb
Product Family
CategoryJIC 37° Flare Fittings
Family0318
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 1290-5 | 0318-05 |
| Parker (Triple-Lok / TFD) | 5 BTX | 0318-05 |
| Sae | 70110 | 0318-05 |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
