JIC 37° Flare Fittings · 0319 family
0319-03

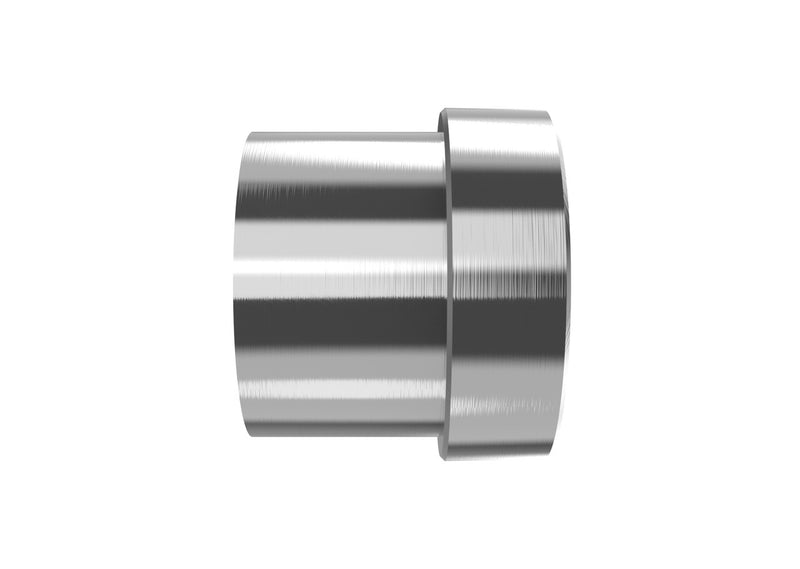

3/16" JIC Tube Sleeve · Sleeve, Tube Flare
$1.72
per pieceIn stock
- Side 1
- 3/16" JIC Tube Sleeve
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 13/16" JIC Tube Sleeve
Tube OD3/16"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationSleeve, Tube Flare
StandardSAE J514
0319-03 is a 3/16" JIC Tube Sleeve in the 0319 Series. 0319 is a JIC tube sleeve that seats against the 37° flare and is drawn up by the tube nut to complete a SAE J514 tube termination.
Specifications
| Part Number | 0319-03 |
|---|---|
| Series | 0319 |
| Product Type | Sleeve, Tube Flare |
| Side 1 Connection | 3/16" JIC Tube Sleeve |
| Tube OD | 3/16" |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 |
| Weight | 0.01 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
3/16" JIC Tube Sleeve
- Tube OD3/16"
- StandardSAE J514
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationSleeve, Tube Flare
- Weight0.01 lb
Product Family
CategoryJIC 37° Flare Fittings
Family0319
Cross Reference
| Brand | Part Number | Higher Fittings Equivalent |
|---|---|---|
| Aeroquip | 900605-3S | 0319-03 |
| Parker (Triple-Lok / TFD) | 3 TX-S | 0319-03 |
| Sae | SAE J514 3 070115C | 0319-03 |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
