JIC 37° Flare Fittings · 2403 family

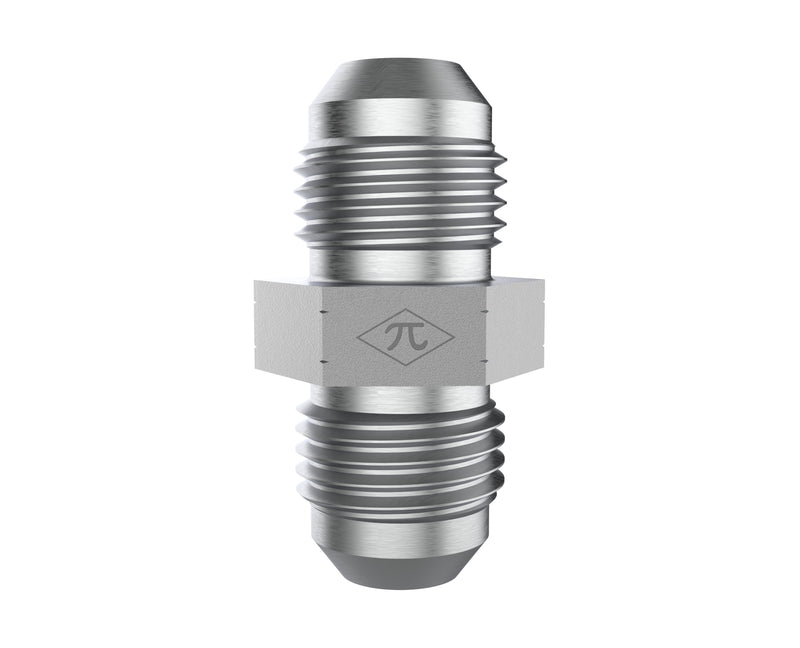

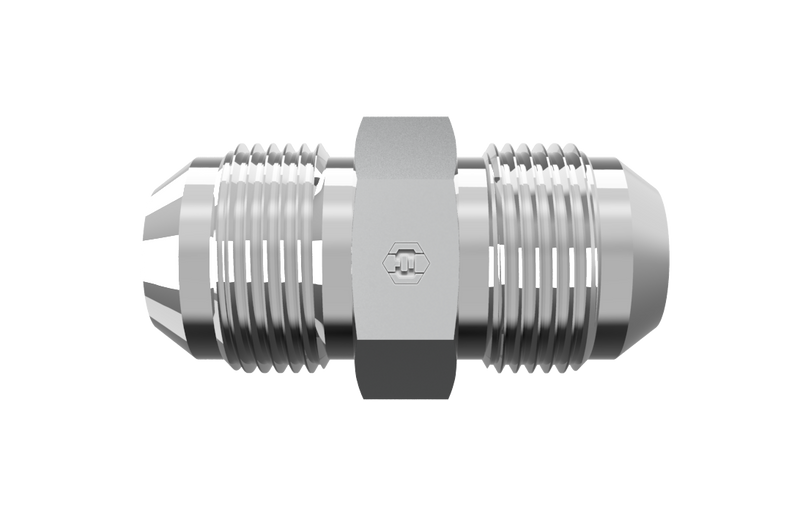

2403-16-16-B
1" Male JIC x 1" Male JIC · Union
$15.14
per pieceIn stock
- Side 1
- 1" Male JIC
- Side 2
- 1" Male JIC
- Material
- Brass
- Plating
- Natural Finish
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11" Male JIC
Side 21" Male JIC
Thread Type1-5/16-12 UN
Tube OD1"
MaterialBrass
Plating / FinishNatural Finish
ConfigurationUnion
StandardSAE J514
2403-16-16-B is a 1" Male JIC x 1" Male JIC in the 2403 Series. For connecting two 37° flared tubes or lines in a straight configuration.
Specifications
| Part Number | 2403-16-16-B |
|---|---|
| Series | 2403 |
| Product Type | Union |
| Side 1 Connection | 1" Male JIC |
| Side 2 Connection | 1" Male JIC |
| Tube OD (Side 1) | 1" |
| Thread Type (Side 1) | 1-5/16-12 UN |
| Thread Type (Side 2) | 1-5/16-12 UN |
| Material | Brass |
| Finish / Plating | Natural Finish |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Weight | 0.46 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1" Male JIC
- Thread1-5/16-12 UN
- Tube OD1"
- StandardSAE J514 - Class 2A Thread
Side 2
1" Male JIC
- Thread1-5/16-12 UN
- Tube OD1"
- StandardSAE J514 - Class 2A Thread
Construction
- MaterialBrass
- PlatingNatural Finish
- ConfigurationUnion
- Weight0.46 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2403
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 2027-16-16B | 2403-16-16-B |
| Parker (Triple-Lok / TFD) | 16 HTX-B | 2403-16-16-B |
| Sae | SAE J514 16-16 070101B | 2403-16-16-B |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
