JIC 37° Flare Fittings · 2403 family

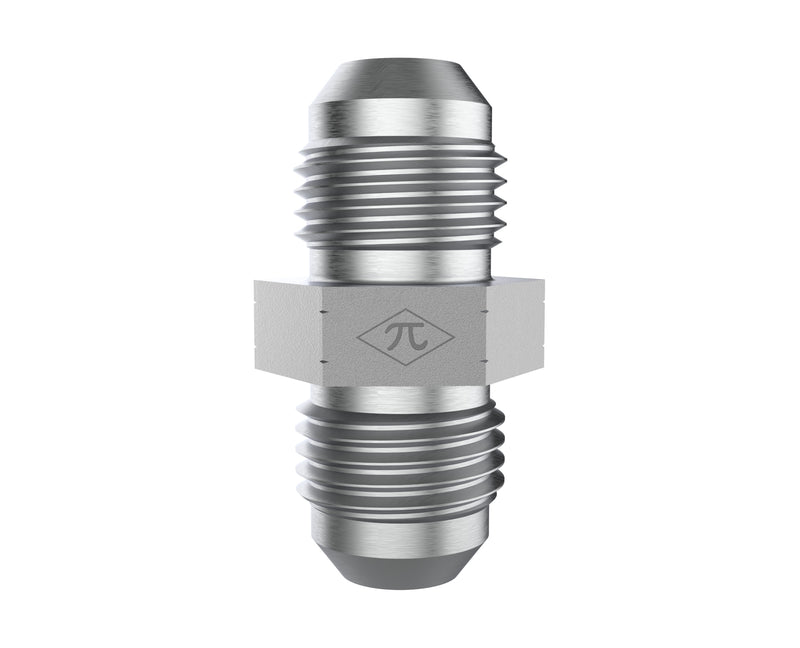

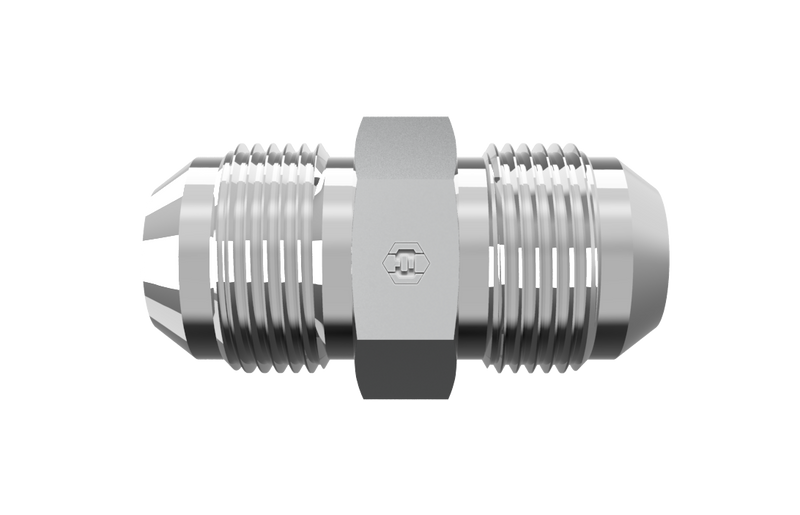

2403-20-16
1-1/4" Male JIC x 1" Male JIC · Union
$12.52
per pieceIn stock
- Side 1
- 1-1/4" Male JIC
- Side 2
- 1" Male JIC
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11-1/4" Male JIC
Side 21" Male JIC
Thread Type1-5/8-12 UN
Tube OD1-1/4" × 1"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationUnion
StandardSAE J514
2403-20-16 is a 1-1/4" Male JIC x 1" Male JIC in the 2403 Series. For connecting two 37° flared tubes or lines in a straight configuration.
Specifications
| Part Number | 2403-20-16 |
|---|---|
| Series | 2403 |
| Product Type | Union |
| Side 1 Connection | 1-1/4" Male JIC |
| Side 2 Connection | 1" Male JIC |
| Tube OD (Side 1 / Side 2) | 1-1/4" / 1" |
| Thread Type (Side 1) | 1-5/8-12 UN |
| Thread Type (Side 2) | 1-5/8-12 UN |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Weight | 0.64 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1-1/4" Male JIC
- Thread1-5/8-12 UN
- Tube OD1-1/4"
- StandardSAE J514 - Class 2A Thread
Side 2
1" Male JIC
- Thread1-5/8-12 UN
- Tube OD1"
- StandardSAE J514 - Class 2A Thread
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationUnion
- Weight0.64 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2403
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 2027-20-16S | 2403-20-16 |
| Parker (Triple-Lok / TFD) | 20-16 HTX-S | 2403-20-16 |
| Sae | SAE J514 20-16 070101C | 2403-20-16 |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
