JIC 37° Flare Fittings · 2403-LH family

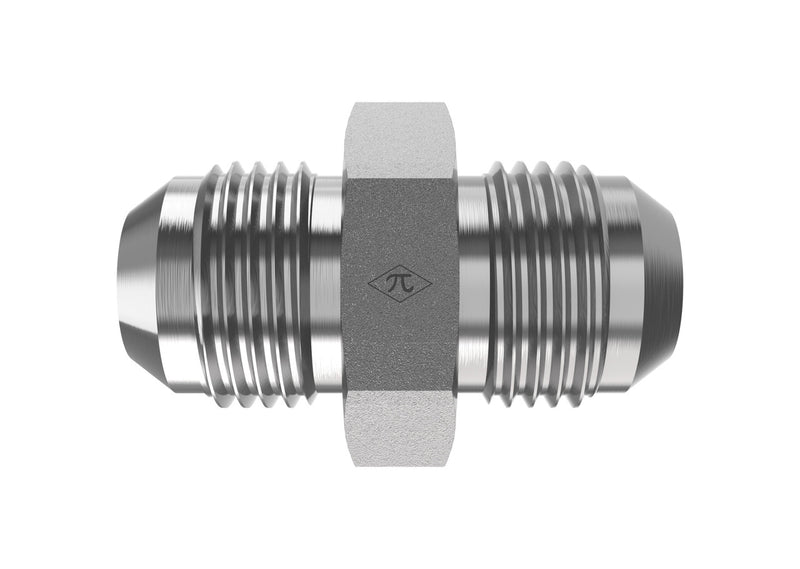

2403-LH-06-06-SS
3/8" Male JIC x 3/8" Male JIC · Union
$13.72
per pieceIn stock
- Side 1
- 3/8" Male JIC
- Side 2
- 3/8" Male JIC
- Material
- Stainless Steel
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 13/8" Male JIC
Side 23/8" Male JIC
Tube OD3/8"
MaterialStainless Steel
ConfigurationUnion
StandardSAE J514

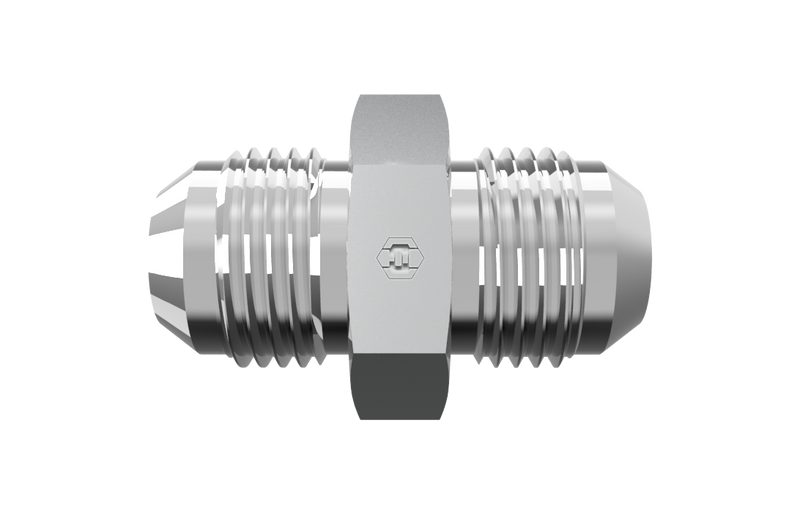

2403-LH-06-06-SS is a 3/8" Male JIC x 3/8" Male JIC in the 2403-LH Series. For connecting two 37° flared tubes or lines with larger hex body for easier wrenching.
Specifications
| Part Number | 2403-LH-06-06-SS |
|---|---|
| Series | 2403-LH |
| Product Type | Union |
| Side 1 Connection | 3/8" Male JIC |
| Side 2 Connection | 3/8" Male JIC |
| Tube OD (Side 1) | 3/8" |
| Material | Stainless Steel |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Weight | 0.08 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
3/8" Male JIC
- Tube OD3/8"
- StandardSAE J514 - Class 2A Thread
Side 2
3/8" Male JIC
- Tube OD3/8"
- StandardSAE J514 - Class 2A Thread
Construction
- MaterialStainless Steel
- ConfigurationUnion
- Weight0.08 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2403-LH
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 259-202712-6-6 | 2403-LH-06-06-SS |
| Parker (Triple-Lok / TFD) | 6 LHTX-SS | 2403-LH-06-06-SS |
| Sae | SAE J514 6-6 070119S | 2403-LH-06-06-SS |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
