JIC 37° Flare Fittings · 2403-LH family
2403-LH-40-40

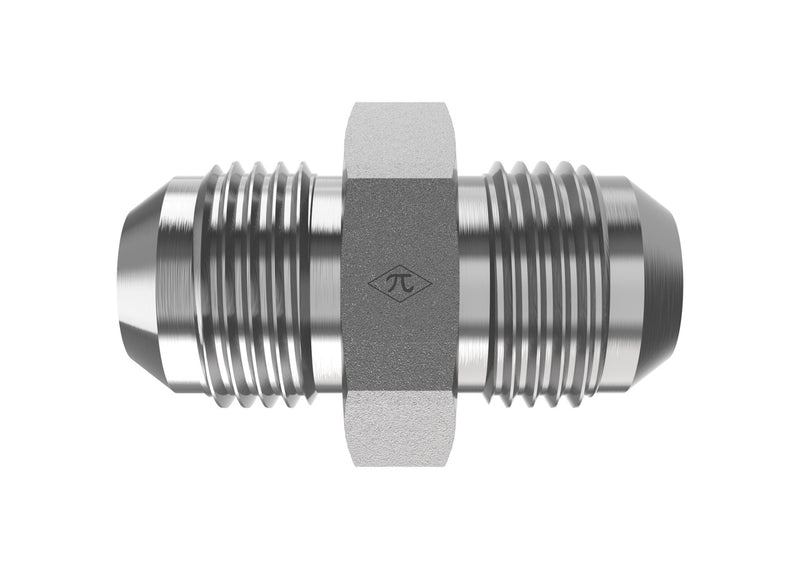

2-1/2" Male JIC x 2-1/2" Male JIC · Union
$110.66
per pieceIn stock
- Side 1
- 2-1/2" Male JIC
- Side 2
- 2-1/2" Male JIC
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 12-1/2" Male JIC
Side 22-1/2" Male JIC
Tube OD2-1/2"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationUnion
StandardSAE J514

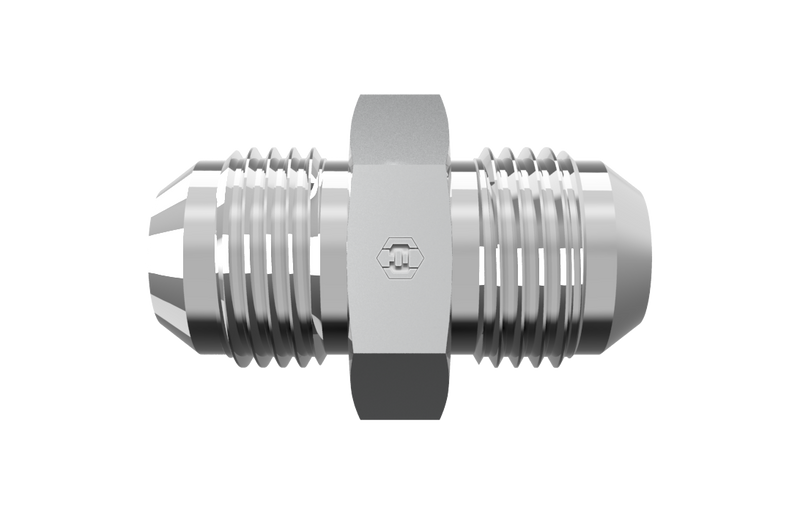

2403-LH-40-40 is a 2-1/2" Male JIC x 2-1/2" Male JIC in the 2403-LH Series. For connecting two 37° flared tubes or lines with larger hex body for easier wrenching.
Specifications
| Part Number | 2403-LH-40-40 |
|---|---|
| Series | 2403-LH |
| Product Type | Union |
| Side 1 Connection | 2-1/2" Male JIC |
| Side 2 Connection | 2-1/2" Male JIC |
| Tube OD (Side 1) | 2-1/2" |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Weight | 3.48 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
2-1/2" Male JIC
- Tube OD2-1/2"
- StandardSAE J514 - Class 2A Thread
Side 2
2-1/2" Male JIC
- Tube OD2-1/2"
- StandardSAE J514 - Class 2A Thread
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationUnion
- Weight3.48 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2403-LH
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 202712-40-40S | 2403-LH-40-40 |
| Parker (Triple-Lok / TFD) | 40 LHTX-S | 2403-LH-40-40 |
| Sae | SAE J514 40-40 070119C | 2403-LH-40-40 |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
