JIC 37° Flare Fittings · 2404 family
2404-06-16

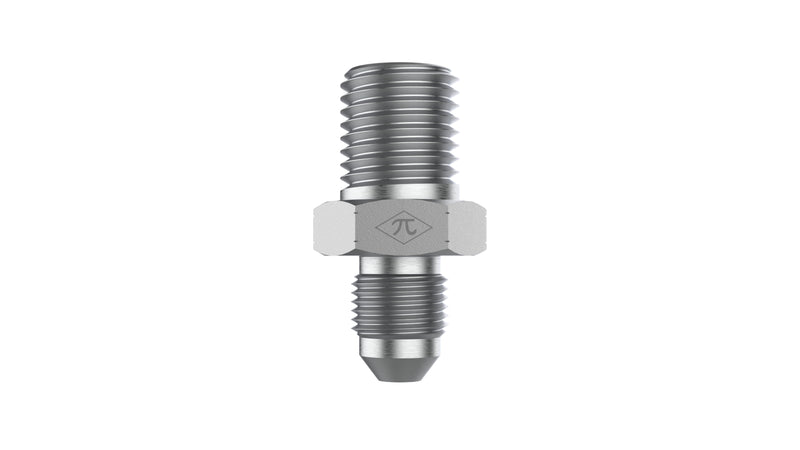

3/8" Male JIC x 1" Male NPTF 30° · Straight Connector
$34.09
per pieceIn stock
- Side 1
- 3/8" Male JIC
- Side 2
- 1" Male NPTF 30°
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 13/8" Male JIC
Side 21" Male NPTF 30°
Thread Type9/16-18 UNF
Tube OD3/8"
Pipe Size1"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationStraight Connector
StandardSAE J514 / SAE J476
2404-06-16 is a 3/8" Male JIC x 1" Male NPTF 30° in the 2404 Series. 2404 adapts a male JIC 37° flare tube end to a male NPTF pipe end in a straight adapter, bridging SAE J514 flare and SAE J476 dry-seal pipe threads.
Specifications
| Part Number | 2404-06-16 |
|---|---|
| Series | 2404 |
| Product Type | Straight Connector |
| Side 1 Connection | 3/8" Male JIC |
| Side 2 Connection | 1" Male NPTF 30° |
| Tube OD | 3/8" |
| Pipe Size (Side 2) | 1" |
| Thread Type (Side 1) | 9/16-18 UNF |
| Thread Type (Side 2) | 9/16-18 UNF |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | SAE J476 |
| Weight | 0.33 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
3/8" Male JIC
- Thread9/16-18 UNF
- Tube OD3/8"
- StandardSAE J514 - Class 2A Thread
Side 2
1" Male NPTF 30°
- Thread9/16-18 UNF
- Pipe Size1"
- StandardSAE J476
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationStraight Connector
- Weight0.33 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2404
Cross Reference
| Brand | Part Number | Higher Fittings Equivalent |
|---|---|---|
| Aeroquip | 2021-16-6S | 2404-06-16 |
| Parker (Triple-Lok / TFD) | 6-16 FTX-S | 2404-06-16 |
| Sae | SAE J514 6-16 070102C | 2404-06-16 |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
