JIC 37° Flare Fittings · 2404 family
2404-10-16-SS
5/8" Male JIC x 1" Male NPTF 30° · Connector
$55.52
per pieceIn stock
- Side 1
- 5/8" Male JIC
- Side 2
- 1" Male NPTF 30°
- Material
- Stainless Steel
- Plating
- Passivated
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 15/8" Male JIC
Side 21" Male NPTF 30°
Thread Type7/8-14 UNF
Tube OD5/8"
Pipe Size1"
MaterialStainless Steel
Plating / FinishPassivated
ConfigurationConnector
StandardSAE J514 / SAE J476

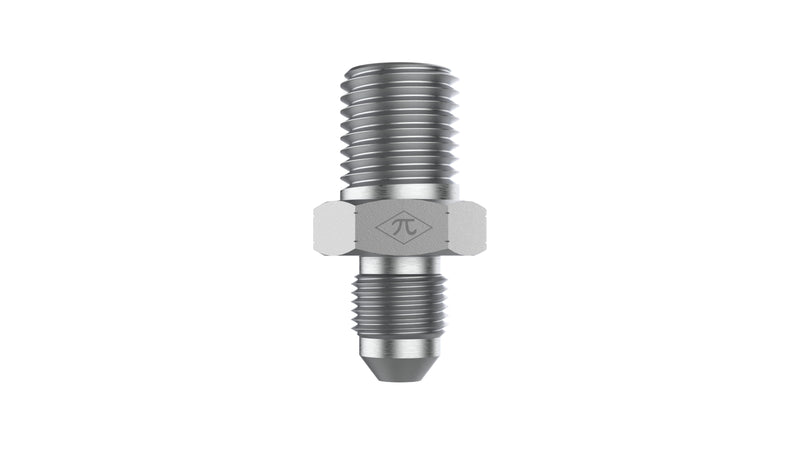

2404-10-16-SS is a 5/8" Male JIC x 1" Male NPTF 30° in the 2404 Series. For connecting 37° flared tubes or lines to pipe without requiring pipe sealant.
Specifications
| Part Number | 2404-10-16-SS |
|---|---|
| Series | 2404 |
| Product Type | Connector |
| Side 1 Connection | 5/8" Male JIC |
| Side 2 Connection | 1" Male NPTF 30° |
| Tube OD | 5/8" |
| Pipe Size (Side 2) | 1" |
| Thread Type (Side 1) | 7/8-14 UNF |
| Thread Type (Side 2) | 7/8-14 UNF |
| Material | Stainless Steel |
| Finish / Plating | Passivated |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | SAE J476 |
| Weight | 0.39 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
5/8" Male JIC
- Thread7/8-14 UNF
- Tube OD5/8"
- StandardSAE J514 - Class 2A Thread
Side 2
1" Male NPTF 30°
- Thread7/8-14 UNF
- Pipe Size1"
- StandardSAE J476
Construction
- MaterialStainless Steel
- PlatingPassivated
- ConfigurationConnector
- Weight0.39 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2404
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 259-2021-16-10 | 2404-10-16-SS |
| Parker (Triple-Lok / TFD) | 10-16 FTX-SS | 2404-10-16-SS |
| Sae | SAE J514 10-16 070102S | 2404-10-16-SS |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
