JIC 37° Flare Fittings · 2404 family

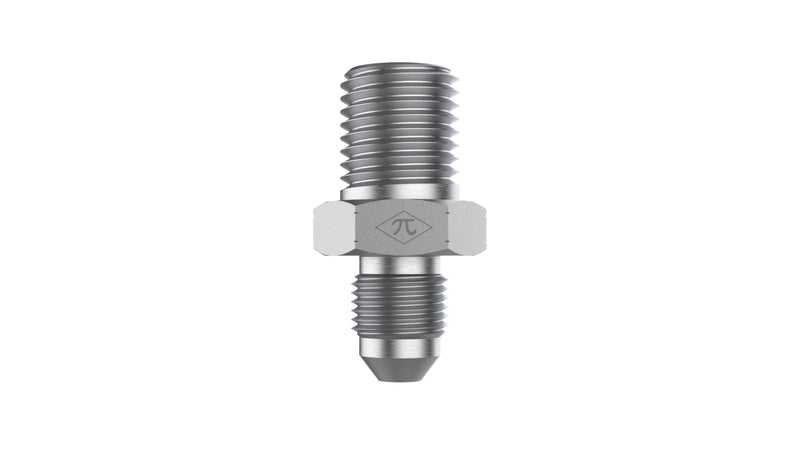

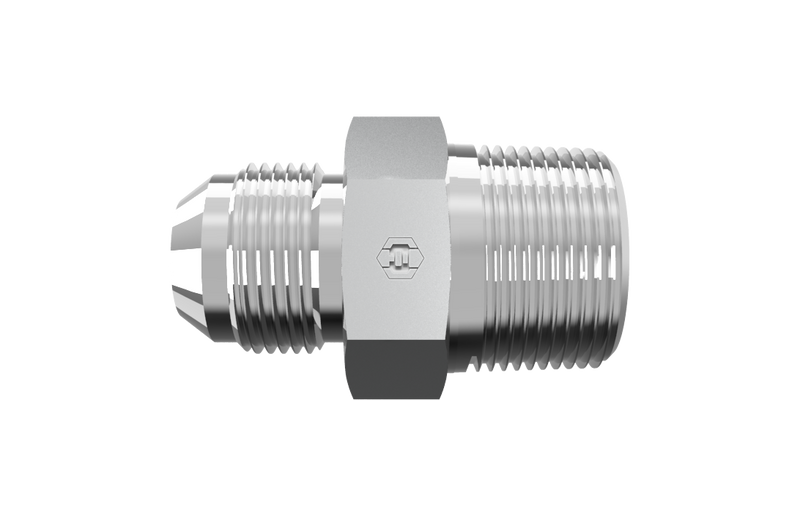

2404-20-40
1-1/4" Male JIC x 2-1/2" Male NPTF 30° · Connector
$130.79
per pieceIn stock
- Side 1
- 1-1/4" Male JIC
- Side 2
- 2-1/2" Male NPTF 30°
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11-1/4" Male JIC
Side 22-1/2" Male NPTF 30°
Thread Type1-5/8-12 UN
Tube OD1-1/4"
Pipe Size2-1/2"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationConnector
StandardSAE J514 / SAE J476
2404-20-40 is a 1-1/4" Male JIC x 2-1/2" Male NPTF 30° in the 2404 Series. For connecting 37° flared tubes or lines to pipe without requiring pipe sealant.
Specifications
| Part Number | 2404-20-40 |
|---|---|
| Series | 2404 |
| Product Type | Connector |
| Side 1 Connection | 1-1/4" Male JIC |
| Side 2 Connection | 2-1/2" Male NPTF 30° |
| Tube OD | 1-1/4" |
| Pipe Size (Side 2) | 2-1/2" |
| Thread Type (Side 1) | 1-5/8-12 UN |
| Thread Type (Side 2) | 1-5/8-12 UN |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | SAE J476 |
| Weight | 2.51 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1-1/4" Male JIC
- Thread1-5/8-12 UN
- Tube OD1-1/4"
- StandardSAE J514 - Class 2A Thread
Side 2
2-1/2" Male NPTF 30°
- Thread1-5/8-12 UN
- Pipe Size2-1/2"
- StandardSAE J476
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationConnector
- Weight2.51 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2404
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 2021-40-20S | 2404-20-40 |
| Parker (Triple-Lok / TFD) | 20-40 FTX-S | 2404-20-40 |
| Sae | SAE J514 20-40 070102C | 2404-20-40 |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
