JIC 37° Flare Fittings · 2408 family

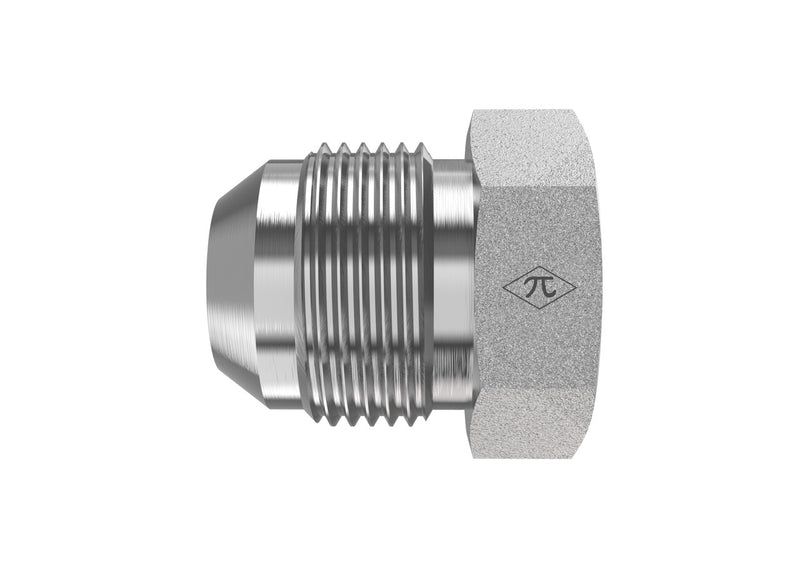

2408-05-SS
5/16" Male JIC · Plug
$6.56
per pieceIn stock
- Side 1
- 5/16" Male JIC
- Material
- Stainless Steel
- Thread
- 1/2-20 UNF
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 15/16" Male JIC
Thread Type1/2-20 UNF
Tube OD5/16"
MaterialStainless Steel
ConfigurationPlug
StandardSAE J514
2408-05-SS is a 5/16" Male JIC in the 2408 Series. For sealing an unused female JIC port.
Specifications
| Part Number | 2408-05-SS |
|---|---|
| Series | 2408 |
| Product Type | Plug |
| Side 1 Connection | 5/16" Male JIC |
| Tube OD | 5/16" |
| Thread Type (Side 1) | 1/2-20 UNF |
| Material | Stainless Steel |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Weight | 0.04 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
5/16" Male JIC
- Thread1/2-20 UNF
- Tube OD5/16"
- StandardSAE J514 - Class 2A Thread
Construction
- MaterialStainless Steel
- ConfigurationPlug
- Weight0.04 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2408
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 259-900599-5 | 2408-05-SS |
| Parker (Triple-Lok / TFD) | 5 PNTX-SS | 2408-05-SS |
| Sae | SAE J514 5 070109S | 2408-05-SS |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
