JIC 37° Flare Fittings · 2408 family

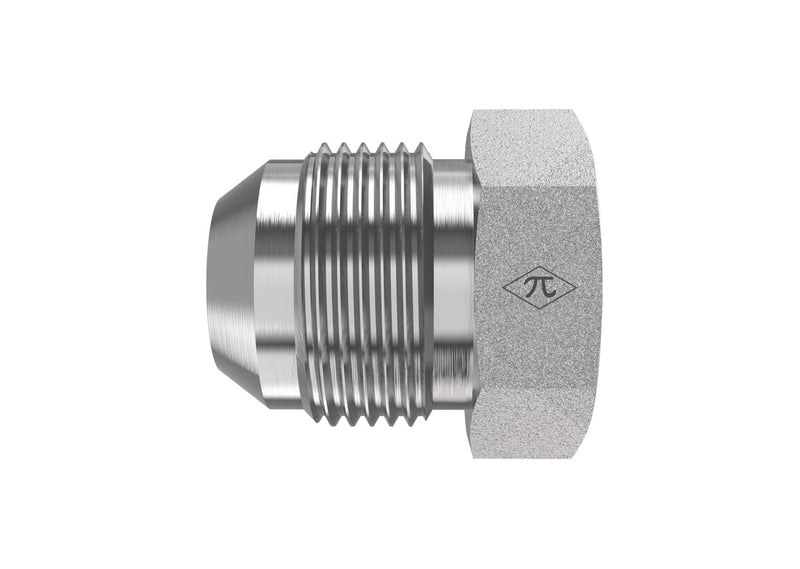

2408-32-SS
2" Male JIC · Plug
$143.45
per pieceIn stock
- Side 1
- 2" Male JIC
- Material
- Stainless Steel
- Thread
- 2-1/2-12 UN
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 12" Male JIC
Thread Type2-1/2-12 UN
Tube OD2"
MaterialStainless Steel
ConfigurationPlug
StandardSAE J514
2408-32-SS is a 2" Male JIC in the 2408 Series. For sealing an unused female JIC port.
Specifications
| Part Number | 2408-32-SS |
|---|---|
| Series | 2408 |
| Product Type | Plug |
| Side 1 Connection | 2" Male JIC |
| Tube OD | 2" |
| Thread Type (Side 1) | 2-1/2-12 UN |
| Material | Stainless Steel |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Weight | 2.00 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
2" Male JIC
- Thread2-1/2-12 UN
- Tube OD2"
- StandardSAE J514 - Class 2A Thread
Construction
- MaterialStainless Steel
- ConfigurationPlug
- Weight2.00 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2408
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 259-900599-32 | 2408-32-SS |
| Parker (Triple-Lok / TFD) | 32 PNTX-SS | 2408-32-SS |
| Sae | SAE J514 32 070109S | 2408-32-SS |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
