2501-04-06-B
1/4" Male JIC x 3/8" Male NPTF 30° · Male Elbow
$7.04
per pieceIn stock
- Side 1
- 1/4" Male JIC
- Side 2
- 3/8" Male NPTF 30°
- Material
- Brass
- Plating
- Natural Finish
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11/4" Male JIC
Side 23/8" Male NPTF 30°
Thread Type7/16-20 UNF
Tube OD1/4"
Pipe Size3/8"
MaterialBrass
Plating / FinishNatural Finish
ConfigurationMale Elbow
StandardSAE J514 / SAE J476

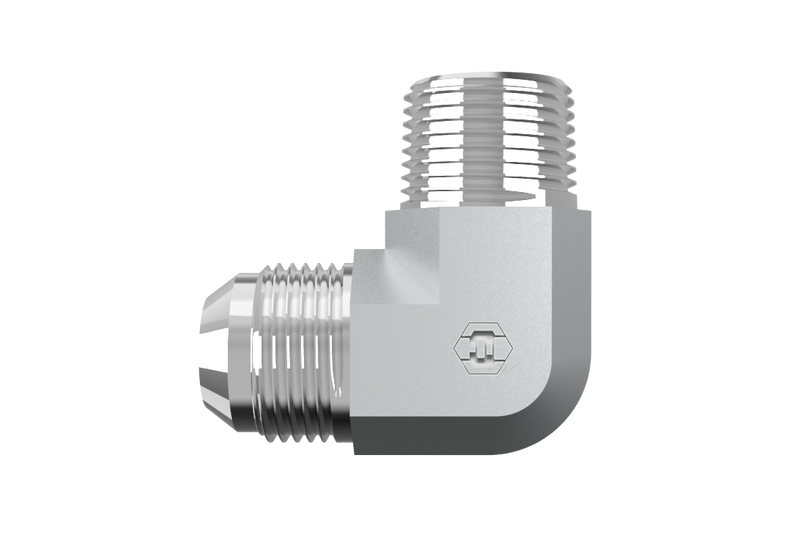

2501-04-06-B is a 1/4" Male JIC x 3/8" Male NPTF 30° in the 2501-FG Series. For connecting 37° flared tubes or lines to pipe at a 90° angle without requiring pipe sealant on the JIC end.
Specifications
| Part Number | 2501-04-06-B |
|---|---|
| Series | 2501-FG |
| Product Type | Male Elbow |
| Side 1 Connection | 1/4" Male JIC |
| Side 2 Connection | 3/8" Male NPTF 30° |
| Tube OD | 1/4" |
| Pipe Size (Side 2) | 3/8" |
| Thread Type (Side 1) | 7/16-20 UNF |
| Thread Type (Side 2) | 7/16-20 UNF |
| Material | Brass |
| Finish / Plating | Natural Finish |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | SAE J476 |
| Weight | 0.18 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1/4" Male JIC
- Thread7/16-20 UNF
- Tube OD1/4"
- StandardSAE J514 - Class 2A Thread
Side 2
3/8" Male NPTF 30°
- Thread7/16-20 UNF
- Pipe Size3/8"
- StandardSAE J476
Construction
- MaterialBrass
- PlatingNatural Finish
- ConfigurationMale Elbow
- Weight0.18 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2501-FG
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 2024-6-4B | 2501-04-06-B |
| Parker (Triple-Lok / TFD) | 4-6 CTX-B | 2501-04-06-B |
| Sae | SAE J514 4-6 070202B | 2501-04-06-B |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
