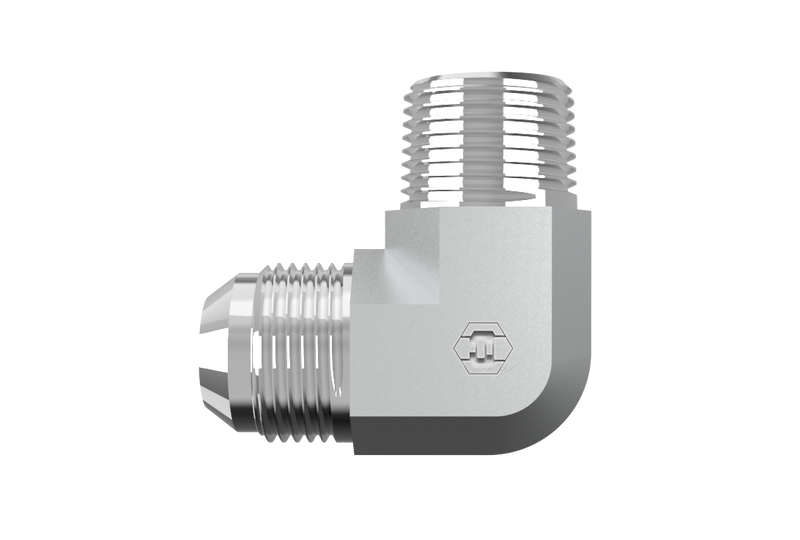

2501-10-16-FG
5/8" Male JIC x 1" Male NPTF 30° · Male Elbow
$9.45
per pieceIn stock
- Side 1
- 5/8" Male JIC
- Side 2
- 1" Male NPTF 30°
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 15/8" Male JIC
Side 21" Male NPTF 30°
Thread Type7/8-14 UNF
Tube OD5/8"
Pipe Size1"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationMale Elbow
StandardSAE J514 / SAE J476
2501-10-16-FG is a 5/8" Male JIC x 1" Male NPTF 30° in the 2501-FG Series. For connecting 37° flared tubes or lines to pipe at a 90° angle without requiring pipe sealant on the JIC end.
Specifications
| Part Number | 2501-10-16-FG |
|---|---|
| Series | 2501-FG |
| Product Type | Male Elbow |
| Side 1 Connection | 5/8" Male JIC |
| Side 2 Connection | 1" Male NPTF 30° |
| Tube OD | 5/8" |
| Pipe Size (Side 2) | 1" |
| Thread Type (Side 1) | 7/8-14 UNF |
| Thread Type (Side 2) | 7/8-14 UNF |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | SAE J476 |
| Weight | 0.70 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
5/8" Male JIC
- Thread7/8-14 UNF
- Tube OD5/8"
- StandardSAE J514 - Class 2A Thread
Side 2
1" Male NPTF 30°
- Thread7/8-14 UNF
- Pipe Size1"
- StandardSAE J476
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationMale Elbow
- Weight0.70 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2501-FG
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 2024-16-10S | 2501-10-16-FG |
| Parker (Triple-Lok / TFD) | 10-16 CTX-S | 2501-10-16-FG |
| Sae | SAE J514 10-16 070202C | 2501-10-16-FG |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
