JIC 37° Flare Fittings · 2501-FG family
2501-32-32-B

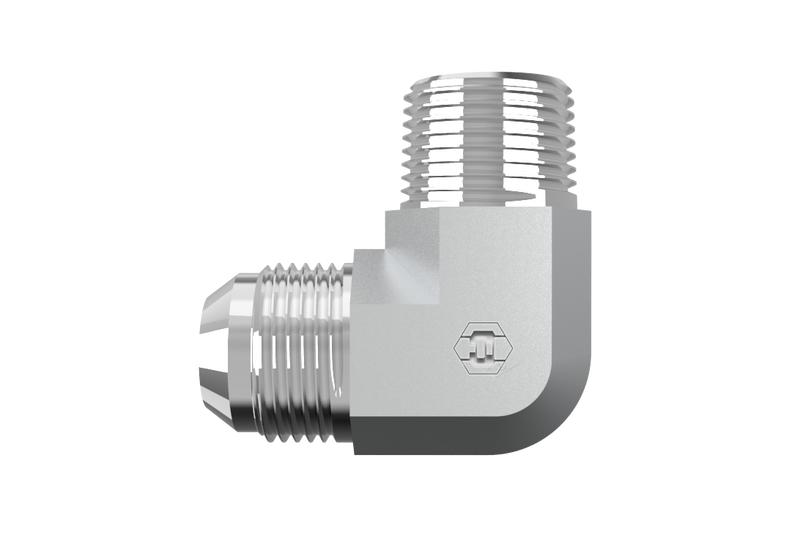

2" Male JIC x 2" Male NPTF 30° · Male Elbow
$221.54
per pieceIn stock
- Side 1
- 2" Male JIC
- Side 2
- 2" Male NPTF 30°
- Material
- Brass
- Plating
- Natural Finish
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 12" Male JIC
Side 22" Male NPTF 30°
Thread Type2-1/2-12 UN
Tube OD2"
Pipe Size2"
MaterialBrass
Plating / FinishNatural Finish
ConfigurationMale Elbow
StandardSAE J514 / SAE J476
2501-32-32-B is a 2" Male JIC x 2" Male NPTF 30° in the 2501-FG Series. For connecting 37° flared tubes or lines to pipe at a 90° angle without requiring pipe sealant on the JIC end.
Specifications
| Part Number | 2501-32-32-B |
|---|---|
| Series | 2501-FG |
| Product Type | Male Elbow |
| Side 1 Connection | 2" Male JIC |
| Side 2 Connection | 2" Male NPTF 30° |
| Tube OD | 2" |
| Pipe Size (Side 2) | 2" |
| Thread Type (Side 1) | 2-1/2-12 UN |
| Thread Type (Side 2) | 2-1/2-12 UN |
| Material | Brass |
| Finish / Plating | Natural Finish |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | SAE J476 |
| Weight | 3.93 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
2" Male JIC
- Thread2-1/2-12 UN
- Tube OD2"
- StandardSAE J514 - Class 2A Thread
Side 2
2" Male NPTF 30°
- Thread2-1/2-12 UN
- Pipe Size2"
- StandardSAE J476
Construction
- MaterialBrass
- PlatingNatural Finish
- ConfigurationMale Elbow
- Weight3.93 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2501-FG
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 2024-32-32B | 2501-32-32-B |
| Parker (Triple-Lok / TFD) | 32 CTX-B | 2501-32-32-B |
| Sae | SAE J514 32-32 070202B | 2501-32-32-B |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
