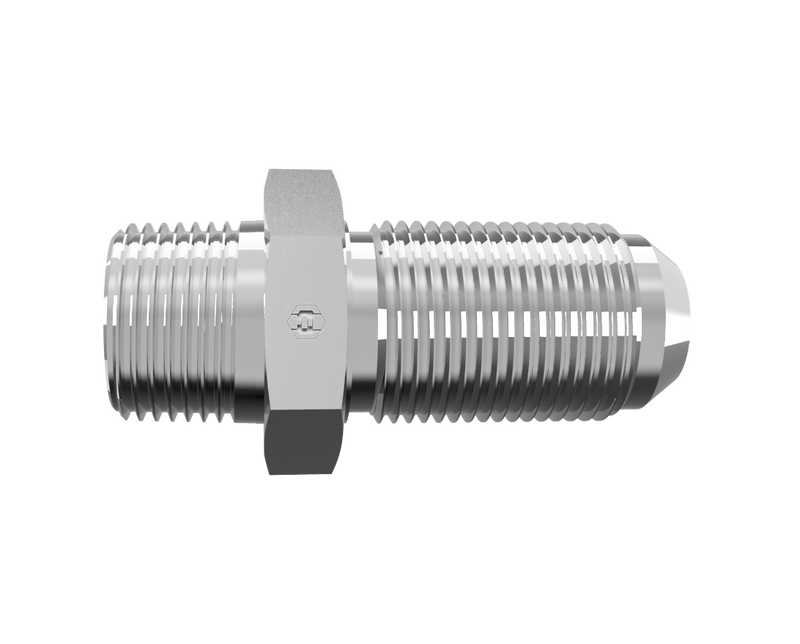

JIC 37° Flare Fittings · 2706 family
2706-08-06
1/2" Male JIC x 3/8" Male NPTF 30° · Male Bulkhead
$4.44
per pieceIn stock
- Side 1
- 1/2" Male JIC
- Side 2
- 3/8" Male NPTF 30°
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11/2" Male JIC
Side 23/8" Male NPTF 30°
Thread Type1/2-14 NPTF
Tube OD1/2"
Pipe Size3/8"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationMale Bulkhead
StandardSAE J514 / SAE J476
2706-08-06 is a 1/2" Male JIC x 3/8" Male NPTF 30° in the 2706 Series. For routing a 37° flared tube or line through a panel or wall to a male pipe thread, with the bulkhead end mounting through the panel.
Specifications
| Part Number | 2706-08-06 |
|---|---|
| Series | 2706 |
| Product Type | Male Bulkhead |
| Side 1 Connection | 1/2" Male JIC |
| Side 2 Connection | 3/8" Male NPTF 30° |
| Tube OD | 1/2" |
| Pipe Size (Side 2) | 3/8" |
| Thread Type (Side 1) | 1/2-14 NPTF |
| Thread Type (Side 2) | 1/2-14 NPTF |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | SAE J476 |
| Weight | 0.16 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1/2" Male JIC
- Thread1/2-14 NPTF
- Tube OD1/2"
- StandardSAE J514 - Class 2A Thread
Side 2
3/8" Male NPTF 30°
- Thread1/2-14 NPTF
- Pipe Size3/8"
- StandardSAE J476
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationMale Bulkhead
- Weight0.16 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2706
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 2240-1-8-6S | 2706-08-06 |
| Parker (Triple-Lok / TFD) | 6-8 WFTX-S | 2706-08-06 |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
