JIC 37° Flare Fittings · 2706 family
2706-16-16-SS

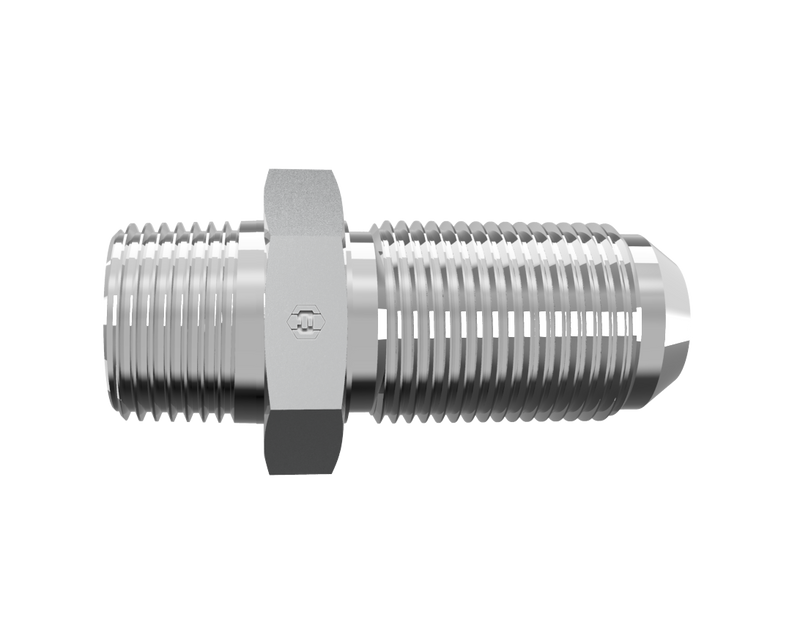

1" Male JIC x 1" Male NPTF 30° · Male Bulkhead
$88.63
per pieceIn stock
- Side 1
- 1" Male JIC
- Side 2
- 1" Male NPTF 30°
- Material
- Stainless Steel
- Plating
- Passivated
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11" Male JIC
Side 21" Male NPTF 30°
Thread Type1-11-1/2 NPTF
Tube OD1"
Pipe Size1"
MaterialStainless Steel
Plating / FinishPassivated
ConfigurationMale Bulkhead
StandardSAE J514 / SAE J476
2706-16-16-SS is a 1" Male JIC x 1" Male NPTF 30° in the 2706 Series. For routing a 37° flared tube or line through a panel or wall to a male pipe thread, with the bulkhead end mounting through the panel.
Specifications
| Part Number | 2706-16-16-SS |
|---|---|
| Series | 2706 |
| Product Type | Male Bulkhead |
| Side 1 Connection | 1" Male JIC |
| Side 2 Connection | 1" Male NPTF 30° |
| Tube OD | 1" |
| Pipe Size (Side 2) | 1" |
| Thread Type (Side 1) | 1-11-1/2 NPTF |
| Thread Type (Side 2) | 1-11-1/2 NPTF |
| Material | Stainless Steel |
| Finish / Plating | Passivated |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | SAE J476 |
| Weight | 0.71 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1" Male JIC
- Thread1-11-1/2 NPTF
- Tube OD1"
- StandardSAE J514 - Class 2A Thread
Side 2
1" Male NPTF 30°
- Thread1-11-1/2 NPTF
- Pipe Size1"
- StandardSAE J476
Construction
- MaterialStainless Steel
- PlatingPassivated
- ConfigurationMale Bulkhead
- Weight0.71 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2706
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 259-2240-1-16-16 | 2706-16-16-SS |
| Parker (Triple-Lok / TFD) | 16 WFTX-SS | 2706-16-16-SS |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
