JIC 37° Flare Fittings · 2706 family
2706-24-24-SS

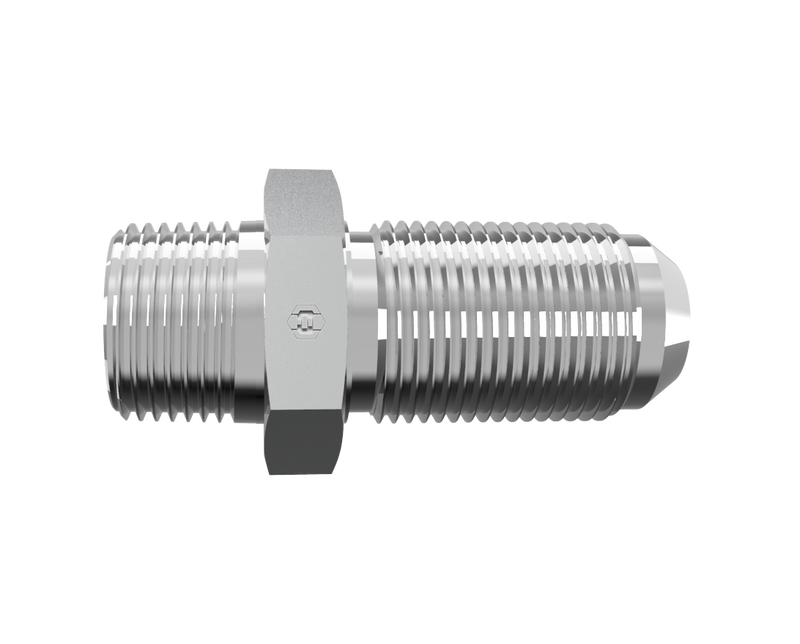

1-1/2" Male JIC x 1-1/2" Male NPTF 30° · Male Bulkhead
$150.40
per pieceIn stock
- Side 1
- 1-1/2" Male JIC
- Side 2
- 1-1/2" Male NPTF 30°
- Material
- Stainless Steel
- Plating
- Passivated
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11-1/2" Male JIC
Side 21-1/2" Male NPTF 30°
Thread Type1-1/2-11-1/2 NPTF
Tube OD1-1/2"
Pipe Size1-1/2"
MaterialStainless Steel
Plating / FinishPassivated
ConfigurationMale Bulkhead
StandardSAE J514 / SAE J476
2706-24-24-SS is a 1-1/2" Male JIC x 1-1/2" Male NPTF 30° in the 2706 Series. For routing a 37° flared tube or line through a panel or wall to a male pipe thread, with the bulkhead end mounting through the panel.
Specifications
| Part Number | 2706-24-24-SS |
|---|---|
| Series | 2706 |
| Product Type | Male Bulkhead |
| Side 1 Connection | 1-1/2" Male JIC |
| Side 2 Connection | 1-1/2" Male NPTF 30° |
| Tube OD | 1-1/2" |
| Pipe Size (Side 2) | 1-1/2" |
| Thread Type (Side 1) | 1-1/2-11-1/2 NPTF |
| Thread Type (Side 2) | 1-1/2-11-1/2 NPTF |
| Material | Stainless Steel |
| Finish / Plating | Passivated |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | SAE J476 |
| Weight | 1.39 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1-1/2" Male JIC
- Thread1-1/2-11-1/2 NPTF
- Tube OD1-1/2"
- StandardSAE J514 - Class 2A Thread
Side 2
1-1/2" Male NPTF 30°
- Thread1-1/2-11-1/2 NPTF
- Pipe Size1-1/2"
- StandardSAE J476
Construction
- MaterialStainless Steel
- PlatingPassivated
- ConfigurationMale Bulkhead
- Weight1.39 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2706
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 259-2240-1-24-24 | 2706-24-24-SS |
| Parker (Triple-Lok / TFD) | 24 WFTX-SS | 2706-24-24-SS |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
