JIC 37° Flare Fittings · 6400-O family

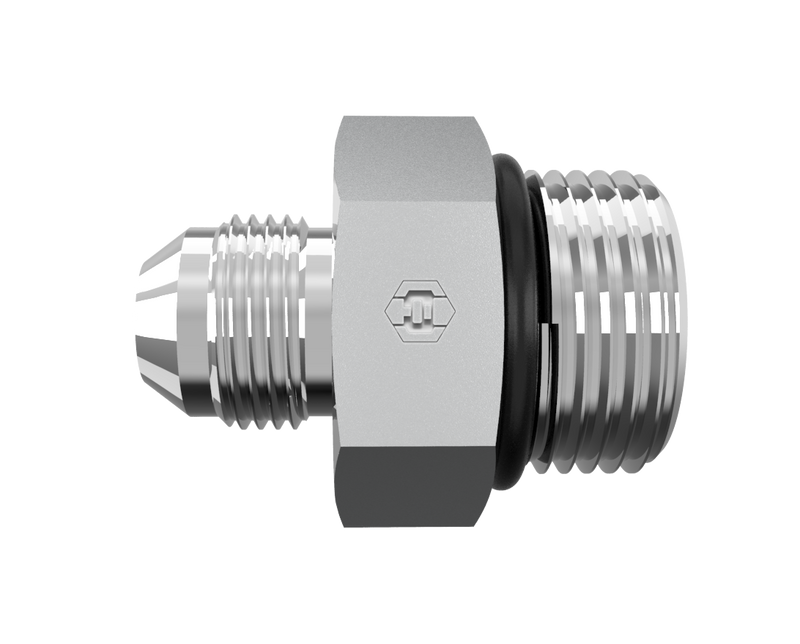

6400-04-08-O-SS
1/4" Male JIC x 3/4-16 Male ORB · Male Connector
$15.86
per pieceIn stock
- Side 1
- 1/4" Male JIC
- Side 2
- 3/4-16 Male ORB
- Material
- Stainless Steel
- Thread
- 7/16-20 UNF
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11/4" Male JIC
Side 23/4-16 Male ORB
Thread Type7/16-20 UNF
Tube OD1/4"
MaterialStainless Steel
ConfigurationMale Connector
StandardSAE J514 / SAE J1926
6400-04-08-O-SS is a 1/4" Male JIC x 3/4-16 Male ORB in the 6400-O Series. For connecting 37° flared tubes or lines to SAE port.
Specifications
| Part Number | 6400-04-08-O-SS |
|---|---|
| Series | 6400-O |
| Product Type | Male Connector |
| Side 1 Connection | 1/4" Male JIC |
| Side 2 Connection | 3/4-16 Male ORB |
| Tube OD | 1/4" |
| Thread Type (Side 1) | 7/16-20 UNF |
| Thread Type (Side 2) | 7/16-20 UNF |
| Material | Stainless Steel |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | SAE J1926 |
| Weight | 0.12 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1/4" Male JIC
- Thread7/16-20 UNF
- Tube OD1/4"
- StandardSAE J514 - Class 2A Thread
Side 2
3/4-16 Male ORB
- Thread7/16-20 UNF
- StandardSAE J1926
Construction
- MaterialStainless Steel
- ConfigurationMale Connector
- Weight0.12 lb
Product Family
CategoryJIC 37° Flare Fittings
Family6400-O
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 259-202702-8-4 | 6400-04-08-O-SS |
| Parker (Triple-Lok / TFD) | 4-8 F5OX-SS | 6400-04-08-O-SS |
| Sae | SAE J514 4-8 070120SN | 6400-04-08-O-SS |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
