JIC 37° Flare Fittings · 6400-O family

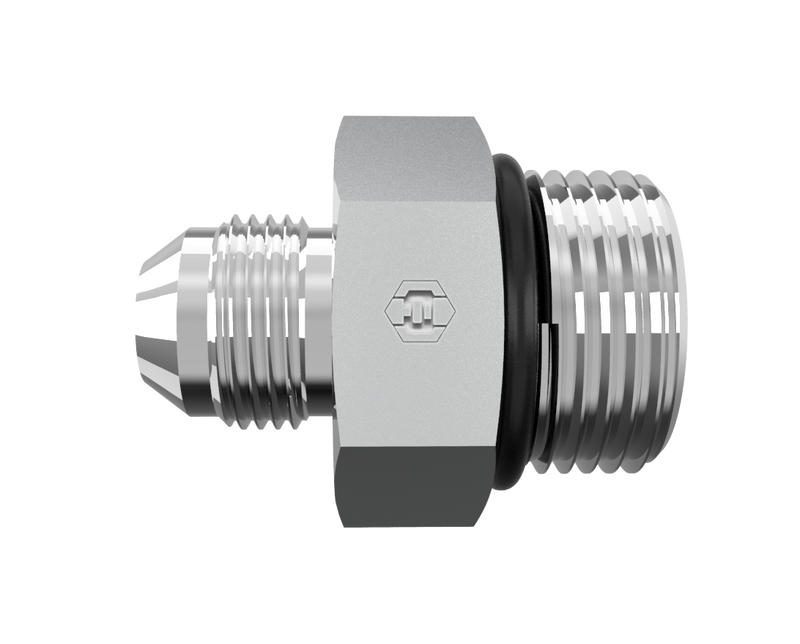

6400-05-10-O
5/16" Male JIC x 7/8-14 Male ORB · Male Connector
$4.42
per pieceIn stock
- Side 1
- 5/16" Male JIC
- Side 2
- 7/8-14 Male ORB
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 15/16" Male JIC
Side 27/8-14 Male ORB
Thread Type1/2-20 UNF
Tube OD5/16"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationMale Connector
StandardSAE J514 / SAE J1926
6400-05-10-O is a 5/16" Male JIC x 7/8-14 Male ORB in the 6400-O Series. For connecting 37° flared tubes or lines to SAE port.
Specifications
| Part Number | 6400-05-10-O |
|---|---|
| Series | 6400-O |
| Product Type | Male Connector |
| Side 1 Connection | 5/16" Male JIC |
| Side 2 Connection | 7/8-14 Male ORB |
| Tube OD | 5/16" |
| Thread Type (Side 1) | 1/2-20 UNF |
| Thread Type (Side 2) | 1/2-20 UNF |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | SAE J1926 |
| Weight | 0.15 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
5/16" Male JIC
- Thread1/2-20 UNF
- Tube OD5/16"
- StandardSAE J514 - Class 2A Thread
Side 2
7/8-14 Male ORB
- Thread1/2-20 UNF
- StandardSAE J1926
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationMale Connector
- Weight0.15 lb
Product Family
CategoryJIC 37° Flare Fittings
Family6400-O
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 202702-10-5S | 6400-05-10-O |
| Parker (Triple-Lok / TFD) | 5-10 F5OX-S | 6400-05-10-O |
| Sae | SAE J514 5-10 070120CN | 6400-05-10-O |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
