JIC 37° Flare Fittings · 6400-O family

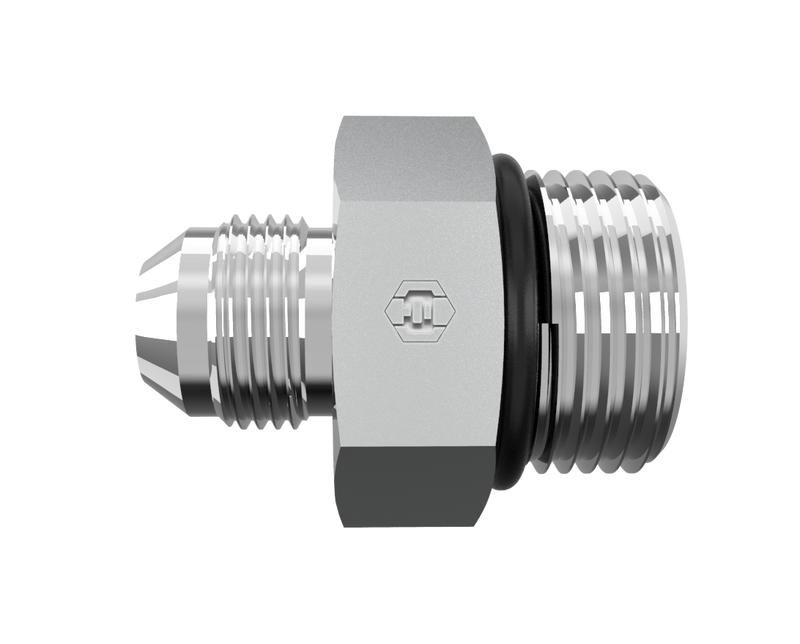

6400-20-16-O
1-1/4" Male JIC x 1-5/16-12 Male ORB · Male Connector
$7.64
per pieceIn stock
- Side 1
- 1-1/4" Male JIC
- Side 2
- 1-5/16-12 Male ORB
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11-1/4" Male JIC
Side 21-5/16-12 Male ORB
Thread Type1-5/8-12 UN
Tube OD1-1/4"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationMale Connector
StandardSAE J514 / SAE J1926
6400-20-16-O is a 1-1/4" Male JIC x 1-5/16-12 Male ORB in the 6400-O Series. For connecting 37° flared tubes or lines to SAE port.
Specifications
| Part Number | 6400-20-16-O |
|---|---|
| Series | 6400-O |
| Product Type | Male Connector |
| Side 1 Connection | 1-1/4" Male JIC |
| Side 2 Connection | 1-5/16-12 Male ORB |
| Tube OD | 1-1/4" |
| Thread Type (Side 1) | 1-5/8-12 UN |
| Thread Type (Side 2) | 1-5/8-12 UN |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | SAE J1926 |
| Weight | 0.71 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1-1/4" Male JIC
- Thread1-5/8-12 UN
- Tube OD1-1/4"
- StandardSAE J514 - Class 2A Thread
Side 2
1-5/16-12 Male ORB
- Thread1-5/8-12 UN
- StandardSAE J1926
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationMale Connector
- Weight0.71 lb
Product Family
CategoryJIC 37° Flare Fittings
Family6400-O
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 202702-16-20S | 6400-20-16-O |
| Parker (Triple-Lok / TFD) | 20-16 F5OX-S | 6400-20-16-O |
| Sae | SAE J514 20-16 070120CN | 6400-20-16-O |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
