JIC 37° Flare Fittings · 6400-O family

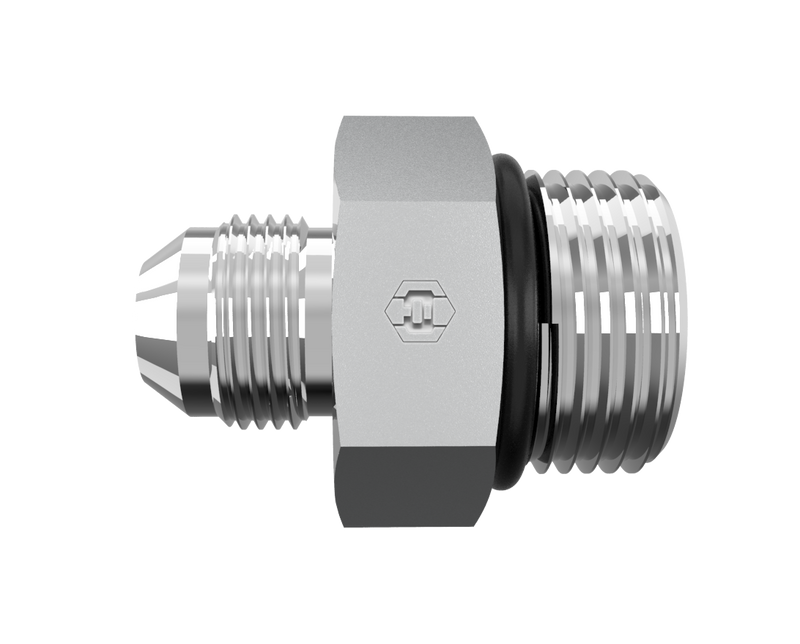

6400-32-20-O-SS
2" Male JIC x 1-5/8-12 Male ORB · Male Connector
$210.77
per pieceIn stock
- Side 1
- 2" Male JIC
- Side 2
- 1-5/8-12 Male ORB
- Material
- Stainless Steel
- Thread
- 2-1/2-12 UN
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 12" Male JIC
Side 21-5/8-12 Male ORB
Thread Type2-1/2-12 UN
Tube OD2"
MaterialStainless Steel
ConfigurationMale Connector
StandardSAE J514 / SAE J1926
6400-32-20-O-SS is a 2" Male JIC x 1-5/8-12 Male ORB in the 6400-O Series. For connecting 37° flared tubes or lines to SAE port.
Specifications
| Part Number | 6400-32-20-O-SS |
|---|---|
| Series | 6400-O |
| Product Type | Male Connector |
| Side 1 Connection | 2" Male JIC |
| Side 2 Connection | 1-5/8-12 Male ORB |
| Tube OD | 2" |
| Thread Type (Side 1) | 2-1/2-12 UN |
| Thread Type (Side 2) | 2-1/2-12 UN |
| Material | Stainless Steel |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | SAE J1926 |
| Weight | 1.95 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
2" Male JIC
- Thread2-1/2-12 UN
- Tube OD2"
- StandardSAE J514 - Class 2A Thread
Side 2
1-5/8-12 Male ORB
- Thread2-1/2-12 UN
- StandardSAE J1926
Construction
- MaterialStainless Steel
- ConfigurationMale Connector
- Weight1.95 lb
Product Family
CategoryJIC 37° Flare Fittings
Family6400-O
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 259-202702-20-32 | 6400-32-20-O-SS |
| Parker (Triple-Lok / TFD) | 32-20 F5OX-SS | 6400-32-20-O-SS |
| Sae | SAE J514 32-20 070120SN | 6400-32-20-O-SS |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
