JIC 37° Flare Fittings · 6400-O family

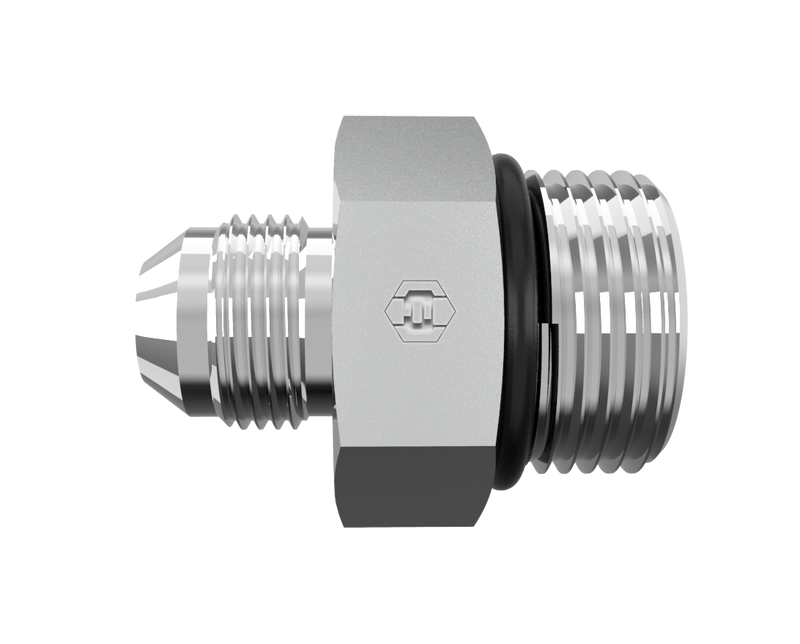

6400-40-40-O
2-1/2" Male JIC x 2-1/2" Male ORB · Male Connector
$172.69
per pieceIn stock
- Side 1
- 2-1/2" Male JIC
- Side 2
- 2-1/2" Male ORB
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 12-1/2" Male JIC
Side 22-1/2" Male ORB
Thread Type3-12 UN
Tube OD2-1/2"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationMale Connector
StandardSAE J514 / SAE J1926
6400-40-40-O is a 2-1/2" Male JIC x 2-1/2" Male ORB in the 6400-O Series. For connecting 37° flared tubes or lines to SAE port.
Specifications
| Part Number | 6400-40-40-O |
|---|---|
| Series | 6400-O |
| Product Type | Male Connector |
| Side 1 Connection | 2-1/2" Male JIC |
| Side 2 Connection | 2-1/2" Male ORB |
| Tube OD | 2-1/2" |
| Thread Type (Side 1) | 3-12 UN |
| Thread Type (Side 2) | 3-12 UN |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | SAE J1926 |
| Weight | 2.33 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
2-1/2" Male JIC
- Thread3-12 UN
- Tube OD2-1/2"
- StandardSAE J514 - Class 2A Thread
Side 2
2-1/2" Male ORB
- Thread3-12 UN
- StandardSAE J1926
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationMale Connector
- Weight2.33 lb
Product Family
CategoryJIC 37° Flare Fittings
Family6400-O
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 202702-40-40S | 6400-40-40-O |
| Parker (Triple-Lok / TFD) | 40 F5OX-S | 6400-40-40-O |
| Sae | SAE J514 40-40 070120CN | 6400-40-40-O |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
