JIC 37° Flare Fittings · 6504 family
6504-05-04-SS

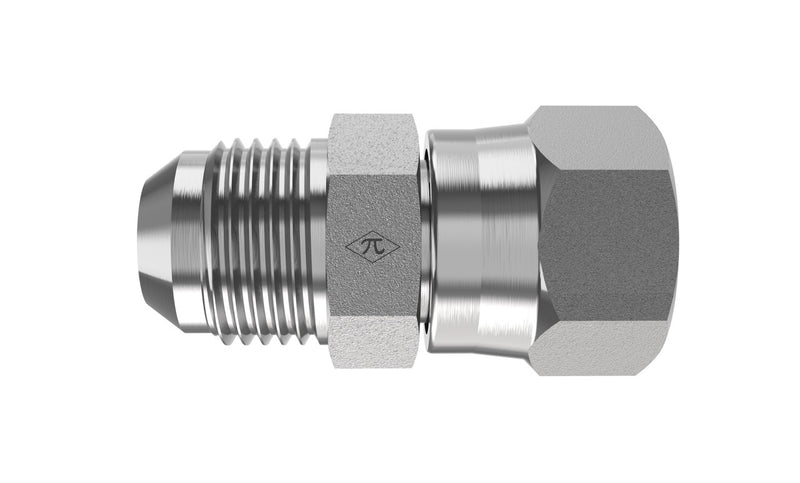

5/16" Male JIC x 1/4" Female JIC Swivel · Swivel Adapter
$153.89
per pieceIn stock
- Side 1
- 5/16" Male JIC
- Side 2
- 1/4" Female JIC Swivel
- Material
- Stainless Steel
- Thread
- 1/2-20 UNF
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 15/16" Male JIC
Side 21/4" Female JIC Swivel
Thread Type1/2-20 UNF
Tube OD5/16" × 1/4"
MaterialStainless Steel
ConfigurationSwivel Adapter
StandardSAE J514 / SAE J514

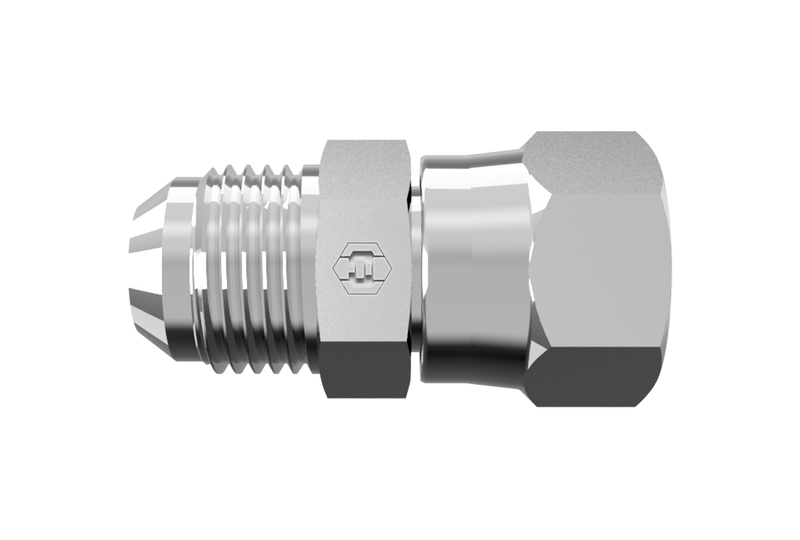

6504-05-04-SS is a 5/16" Male JIC x 1/4" Female JIC Swivel in the 6504 Series. 6504 adapts a male JIC 37° flare tube end to a female JIC 37° swivel end in a straight adapter, often changing flare size between two SAE J514 connections.
Specifications
| Part Number | 6504-05-04-SS |
|---|---|
| Series | 6504 |
| Product Type | Swivel Adapter |
| Side 1 Connection | 5/16" Male JIC |
| Side 2 Connection | 1/4" Female JIC Swivel |
| Tube OD (Side 1 / Side 2) | 5/16" / 1/4" |
| Thread Type (Side 1) | 1/2-20 UNF |
| Thread Type (Side 2) | 1/2-20 UNF |
| Material | Stainless Steel |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | SAE J514 - Class 2B Thread |
| Weight | 0.06 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
5/16" Male JIC
- Thread1/2-20 UNF
- Tube OD5/16"
- StandardSAE J514 - Class 2A Thread
Side 2
1/4" Female JIC Swivel
- Thread1/2-20 UNF
- Tube OD1/4"
- StandardSAE J514 - Class 2B Thread
Construction
- MaterialStainless Steel
- ConfigurationSwivel Adapter
- Weight0.06 lb
Product Family
CategoryJIC 37° Flare Fittings
Family6504
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Parker (Triple-Lok / TFD) | 5-4 XHX6-SS | 6504-05-04-SS |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
