JIC 37° Flare Fittings · 6504 family
6504-06-10

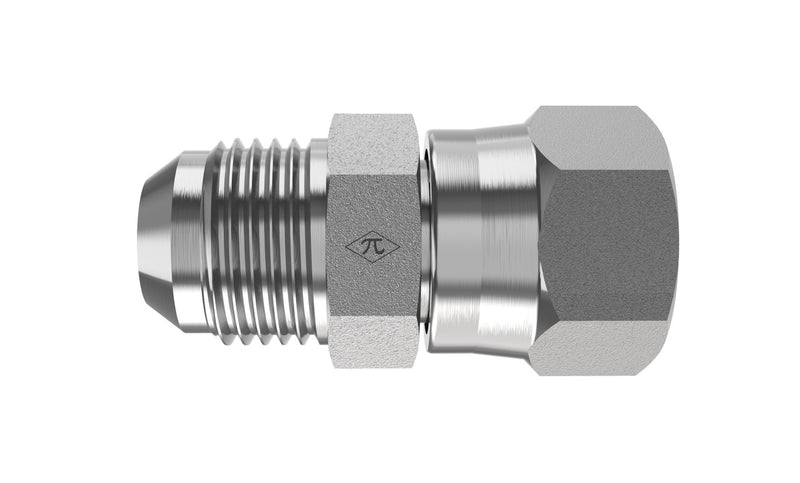

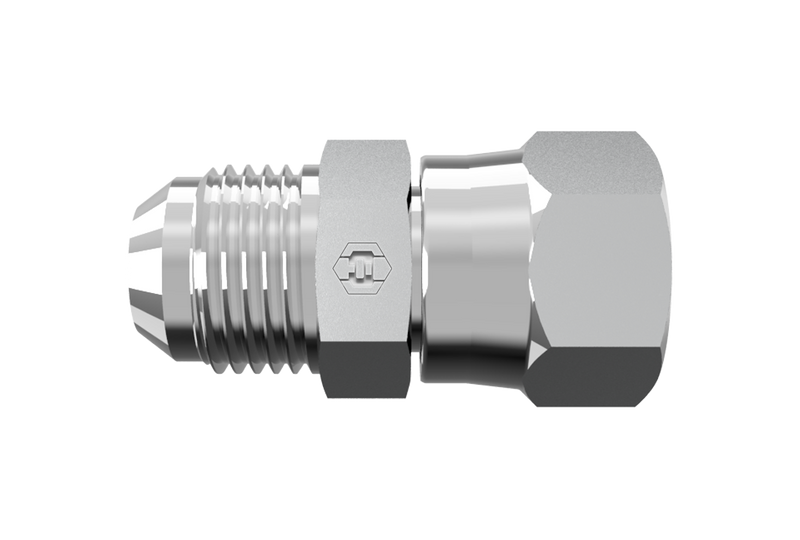

3/8" Male JIC x 5/8" Female JIC Swivel · Swivel Adapter
$6.30
per pieceIn stock
- Side 1
- 3/8" Male JIC
- Side 2
- 5/8" Female JIC Swivel
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 13/8" Male JIC
Side 25/8" Female JIC Swivel
Thread Type9/16-18 UNF
Tube OD3/8" × 5/8"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationSwivel Adapter
StandardSAE J514 / SAE J514
6504-06-10 is a 3/8" Male JIC x 5/8" Female JIC Swivel in the 6504 Series. For connecting 37° flared tubes or lines to JIC lines using a swivel for alignment.
Specifications
| Part Number | 6504-06-10 |
|---|---|
| Series | 6504 |
| Product Type | Swivel Adapter |
| Side 1 Connection | 3/8" Male JIC |
| Side 2 Connection | 5/8" Female JIC Swivel |
| Tube OD (Side 1 / Side 2) | 3/8" / 5/8" |
| Thread Type (Side 1) | 9/16-18 UNF |
| Thread Type (Side 2) | 9/16-18 UNF |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | SAE J514 - Class 2B Thread |
| Weight | 0.19 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
3/8" Male JIC
- Thread9/16-18 UNF
- Tube OD3/8"
- StandardSAE J514 - Class 2A Thread
Side 2
5/8" Female JIC Swivel
- Thread9/16-18 UNF
- Tube OD5/8"
- StandardSAE J514 - Class 2B Thread
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationSwivel Adapter
- Weight0.19 lb
Product Family
CategoryJIC 37° Flare Fittings
Family6504
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Parker (Triple-Lok / TFD) | 6-10 XHX6-S | 6504-06-10 |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
