JIC 37° Flare Fittings · 6504 family
6504-16-20

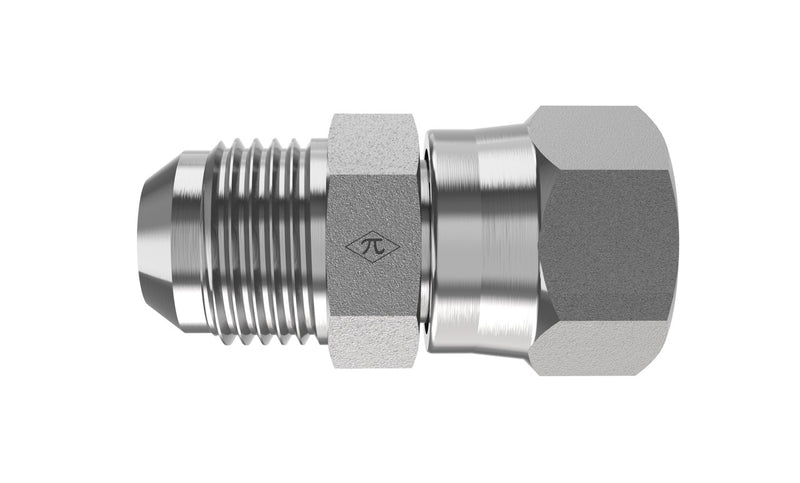

1" Male JIC x 1-1/4" Female JIC Swivel · Swivel Adapter
$14.51
per pieceIn stock
- Side 1
- 1" Male JIC
- Side 2
- 1-1/4" Female JIC Swivel
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11" Male JIC
Side 21-1/4" Female JIC Swivel
Thread Type1-5/16-12 UN
Tube OD1" × 1-1/4"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationSwivel Adapter
StandardSAE J514 / SAE J514

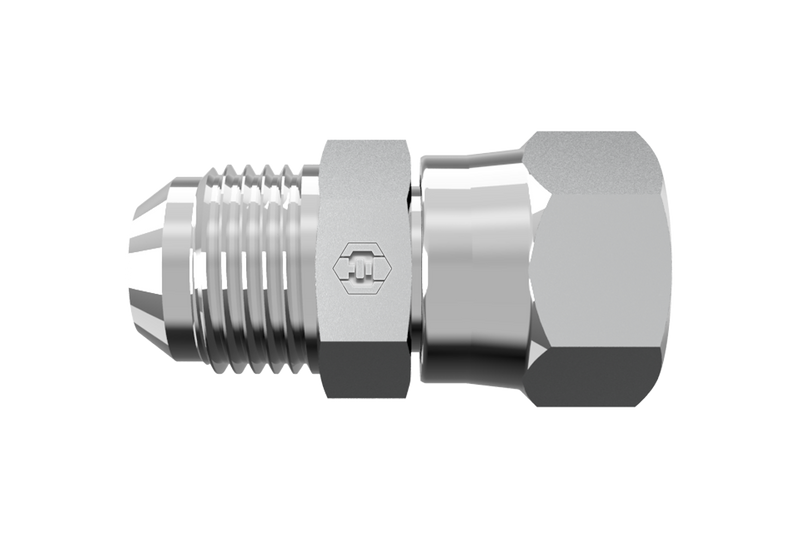

6504-16-20 is a 1" Male JIC x 1-1/4" Female JIC Swivel in the 6504 Series. For connecting 37° flared tubes or lines to JIC lines using a swivel for alignment.
Specifications
| Part Number | 6504-16-20 |
|---|---|
| Series | 6504 |
| Product Type | Swivel Adapter |
| Side 1 Connection | 1" Male JIC |
| Side 2 Connection | 1-1/4" Female JIC Swivel |
| Tube OD (Side 1 / Side 2) | 1" / 1-1/4" |
| Thread Type (Side 1) | 1-5/16-12 UN |
| Thread Type (Side 2) | 1-5/16-12 UN |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | SAE J514 - Class 2B Thread |
| Weight | 0.85 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1" Male JIC
- Thread1-5/16-12 UN
- Tube OD1"
- StandardSAE J514 - Class 2A Thread
Side 2
1-1/4" Female JIC Swivel
- Thread1-5/16-12 UN
- Tube OD1-1/4"
- StandardSAE J514 - Class 2B Thread
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationSwivel Adapter
- Weight0.85 lb
Product Family
CategoryJIC 37° Flare Fittings
Family6504
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Parker (Triple-Lok / TFD) | 16-20 XHX6-S | 6504-16-20 |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
