JIC 37° Flare Fittings · 6504 family
6504-32-32-SS

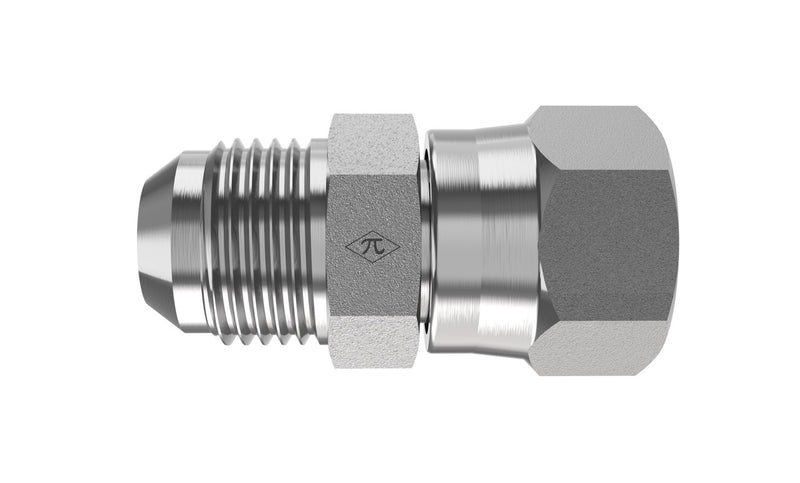

2" Male JIC x 2" Female JIC Swivel · Swivel Adapter
$297.74
per pieceIn stock
- Side 1
- 2" Male JIC
- Side 2
- 2" Female JIC Swivel
- Material
- Stainless Steel
- Thread
- 2-1/2-12 UN
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 12" Male JIC
Side 22" Female JIC Swivel
Thread Type2-1/2-12 UN
Tube OD2"
MaterialStainless Steel
ConfigurationSwivel Adapter
StandardSAE J514 / SAE J514

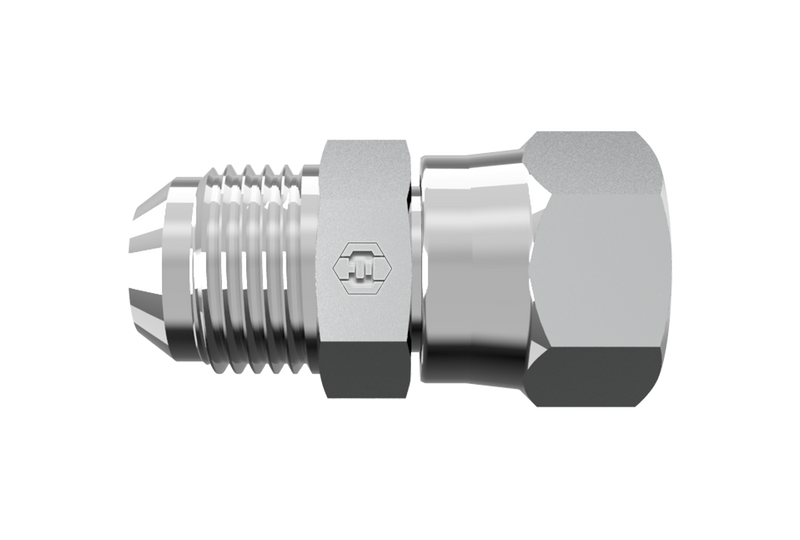

6504-32-32-SS is a 2" Male JIC x 2" Female JIC Swivel in the 6504 Series. For connecting 37° flared tubes or lines to JIC lines using a swivel for alignment.
Specifications
| Part Number | 6504-32-32-SS |
|---|---|
| Series | 6504 |
| Product Type | Swivel Adapter |
| Side 1 Connection | 2" Male JIC |
| Side 2 Connection | 2" Female JIC Swivel |
| Tube OD (Side 1) | 2" |
| Thread Type (Side 1) | 2-1/2-12 UN |
| Thread Type (Side 2) | 2-1/2-12 UN |
| Material | Stainless Steel |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | SAE J514 - Class 2B Thread |
| Weight | 2.49 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
2" Male JIC
- Thread2-1/2-12 UN
- Tube OD2"
- StandardSAE J514 - Class 2A Thread
Side 2
2" Female JIC Swivel
- Thread2-1/2-12 UN
- Tube OD2"
- StandardSAE J514 - Class 2B Thread
Construction
- MaterialStainless Steel
- ConfigurationSwivel Adapter
- Weight2.49 lb
Product Family
CategoryJIC 37° Flare Fittings
Family6504
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Parker (Triple-Lok / TFD) | 32 XHX6-SS | 6504-32-32-SS |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
