JIC 37° Flare Fittings · 6505 family
6505-02-04

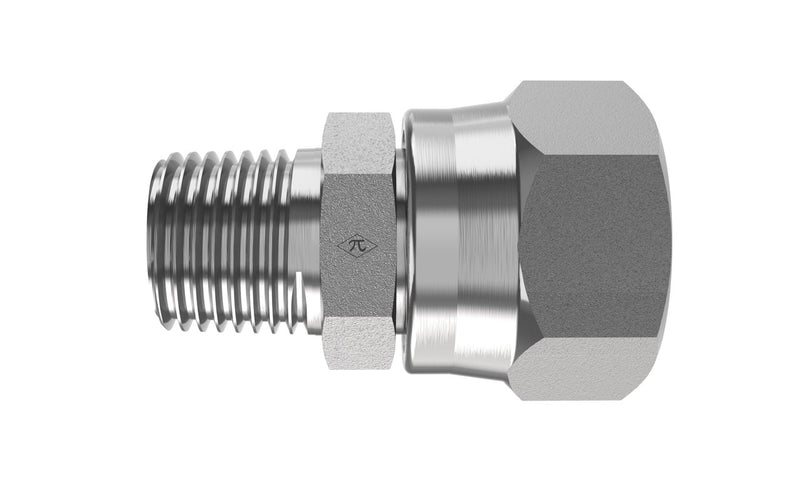

1/8" Male NPTF 30° x 1/4" Female JIC Swivel · Swivel Connector
$3.95
per pieceIn stock
- Side 1
- 1/8" Male NPTF 30°
- Side 2
- 1/4" Female JIC Swivel
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11/8" Male NPTF 30°
Side 21/4" Female JIC Swivel
Thread Type1/8-27 NPTF
Pipe Size1/8"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationSwivel Connector
StandardSAE J476 / SAE J514
6505-02-04 is a 1/8" Male NPTF 30° x 1/4" Female JIC Swivel in the 6505 Series. For connecting pipe to JIC lines using a swivel for alignment and without requiring pipe sealant.
Specifications
| Part Number | 6505-02-04 |
|---|---|
| Series | 6505 |
| Product Type | Swivel Connector |
| Side 1 Connection | 1/8" Male NPTF 30° |
| Side 2 Connection | 1/4" Female JIC Swivel |
| Pipe Size (Side 1) | 1/8" |
| Thread Type (Side 1) | 1/8-27 NPTF |
| Thread Type (Side 2) | 1/8-27 NPTF |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J476 |
| Standard (Side 2) | SAE J514 - Class 2B Thread |
| Weight | 0.05 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1/8" Male NPTF 30°
- Thread1/8-27 NPTF
- Pipe Size1/8"
- StandardSAE J476
Side 2
1/4" Female JIC Swivel
- Thread1/8-27 NPTF
- Tube OD1/4"
- StandardSAE J514 - Class 2B Thread
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationSwivel Connector
- Weight0.05 lb
Product Family
CategoryJIC 37° Flare Fittings
Family6505
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 2018-2-4S | 6505-02-04 |
| Parker (Triple-Lok / TFD) | 4 F6X-S | 6505-02-04 |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
