JIC 37° Flare Fittings · 6506 family
6506-12-12

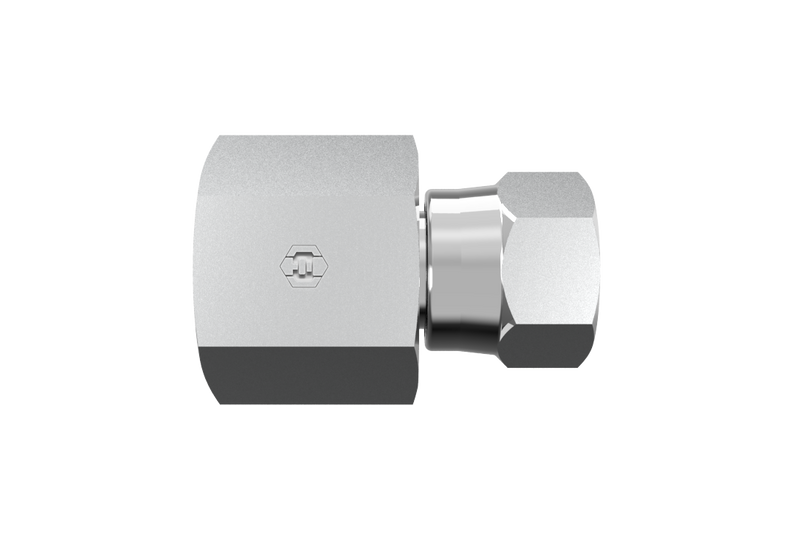

3/4" Female NPTF x 3/4" Female JIC Swivel · Swivel Connector
$5.66
per pieceIn stock
- Side 1
- 3/4" Female NPTF
- Side 2
- 3/4" Female JIC Swivel
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 13/4" Female NPTF
Side 23/4" Female JIC Swivel
Thread Type3/4-14 NPTF
Pipe Size3/4"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationSwivel Connector
StandardSAE J476 / SAE J514
6506-12-12 is a 3/4" Female NPTF x 3/4" Female JIC Swivel in the 6506 Series. For connecting pipe to JIC lines using a swivel for alignment and without requiring pipe sealant.
Specifications
| Part Number | 6506-12-12 |
|---|---|
| Series | 6506 |
| Product Type | Swivel Connector |
| Side 1 Connection | 3/4" Female NPTF |
| Side 2 Connection | 3/4" Female JIC Swivel |
| Pipe Size (Side 1) | 3/4" |
| Thread Type (Side 1) | 3/4-14 NPTF |
| Thread Type (Side 2) | 3/4-14 NPTF |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J476 |
| Standard (Side 2) | SAE J514 - Class 2B Thread |
| Weight | 0.52 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
3/4" Female NPTF
- Thread3/4-14 NPTF
- Pipe Size3/4"
- StandardSAE J476
Side 2
3/4" Female JIC Swivel
- Thread3/4-14 NPTF
- Tube OD3/4"
- StandardSAE J514 - Class 2B Thread
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationSwivel Connector
- Weight0.52 lb
Product Family
CategoryJIC 37° Flare Fittings
Family6506
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 2242-12-12S | 6506-12-12 |
| Parker (Triple-Lok / TFD) | 12 G6X-S | 6506-12-12 |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
