JIC 37° Flare Fittings · 6506 family
6506-20-20-SS

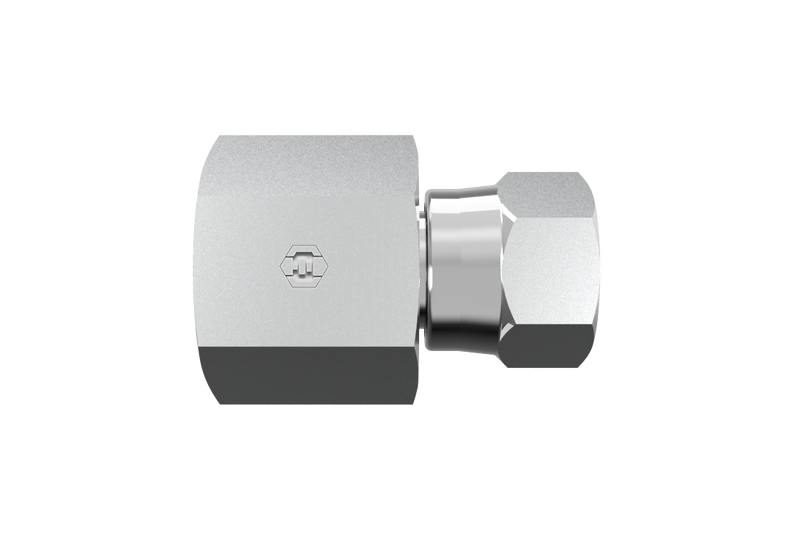

1-1/4" Female NPTF x 1-1/4" Female JIC Swivel · Swivel Connector
$138.80
per pieceIn stock
- Side 1
- 1-1/4" Female NPTF
- Side 2
- 1-1/4" Female JIC Swivel
- Material
- Stainless Steel
- Thread
- 1-1/4-11-1/2 NPTF
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11-1/4" Female NPTF
Side 21-1/4" Female JIC Swivel
Thread Type1-1/4-11-1/2 NPTF
Pipe Size1-1/4"
MaterialStainless Steel
ConfigurationSwivel Connector
StandardSAE J476 / SAE J514
6506-20-20-SS is a 1-1/4" Female NPTF x 1-1/4" Female JIC Swivel in the 6506 Series. For connecting pipe to JIC lines using a swivel for alignment and without requiring pipe sealant.
Specifications
| Part Number | 6506-20-20-SS |
|---|---|
| Series | 6506 |
| Product Type | Swivel Connector |
| Side 1 Connection | 1-1/4" Female NPTF |
| Side 2 Connection | 1-1/4" Female JIC Swivel |
| Pipe Size (Side 1) | 1-1/4" |
| Thread Type (Side 1) | 1-1/4-11-1/2 NPTF |
| Thread Type (Side 2) | 1-1/4-11-1/2 NPTF |
| Material | Stainless Steel |
| Standard (Side 1) | SAE J476 |
| Standard (Side 2) | SAE J514 - Class 2B Thread |
| Weight | 1.30 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1-1/4" Female NPTF
- Thread1-1/4-11-1/2 NPTF
- Pipe Size1-1/4"
- StandardSAE J476
Side 2
1-1/4" Female JIC Swivel
- Thread1-1/4-11-1/2 NPTF
- Tube OD1-1/4"
- StandardSAE J514 - Class 2B Thread
Construction
- MaterialStainless Steel
- ConfigurationSwivel Connector
- Weight1.30 lb
Product Family
CategoryJIC 37° Flare Fittings
Family6506
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 259-2242-20-20 | 6506-20-20-SS |
| Parker (Triple-Lok / TFD) | 20 G6X-SS | 6506-20-20-SS |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
